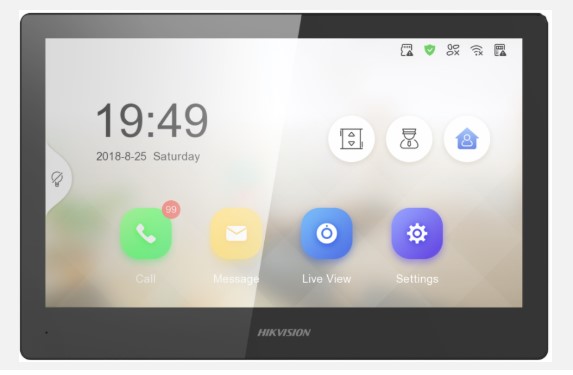

video door phone KH6 Series IPBased Indoor Station
video door phone KH6 Series IPBased Indoor Station

video door phone KH6 Series IPBased Indoor Station

KTI01001002DSKH

Key Feature
 New UI V2.0: User friendly design
 7-inch colorful touch screen with resolution 1024 × 600
 Standard PoE
 Stores messages and capture pictures in the TF card
 Remote unlocking via the client software or the mobile client
 Views live videos of door stations and linked cameras

Specification
System Parameters
Operating System Embedded Linux operation system
ROM 32 MB
RAM 128 MB
CPU Embedded processor
Display Parameters
Screen Size 7-inch colorful TFT screen
Operation Method Capacitive touch screen
Type Colorful TFT screen
Resolution 1024 × 600
Video Parameters
Lens /
Resolution /
FOV /
WDR /
Video Compression Standard DS-KH6320-WTE1
Focal Length /
Audio Parameters
Audio Compression Standard G.711 U
Audio Input Built-in omnidirectional microphone
Audio Output Built-in loudspeaker
Audio Compression Bitrate 64 Kbps
Audio Quality Noise suppression and echo cancellation
Volume Adjustment Adjustable
Capacity
Event Capacity 200
Notice Capacity 16
Linked Indoor Extensions Capacity 5
Linked Doorphone Capacity 8
Network Parameters
Communication Protocol TCP/IP, SIP, RTSP
Wired Network 10/100 Mbps self-adaptive
Wi-Fi Standard Wi-Fi 802.11 b/g/n
Bluetooth Version /
3G/4G Standard /
Zigbee /
Device Interfaces
Alarm Input 8-ch alarm inputs
Network Interface 1 RJ-45 10/100 Mbps self-adaptive
TAMPER /
RS-485 1
USB /
TF Card Max to 32 G, SD 2.0 or lower version
Alarm Output 2
Power Interface 1
General
Button 0
Installation Surface mounting
Indicator 0
Weight With package: 683 g
Without package: 355 g
Protective Level /
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimensions 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
Battery /
Application Environment Indoor
Power Consumption ≤ 6 W
Language English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak
