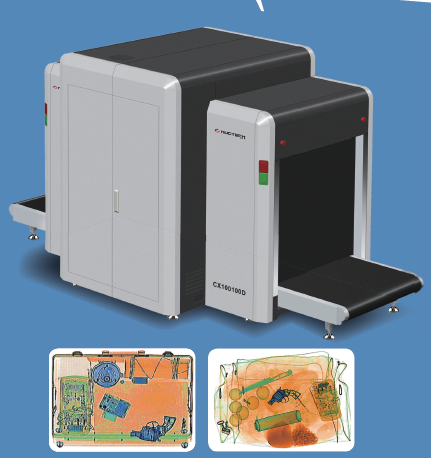

X Ray Baggage Scanner CX100100D NUCTECH
KTI040230011010

Make:Nuetech
Model No: CX100100D
Tunnel Dimensions:1010mm(W) × 1005mm(H)
Conveyor Speed:0.2 m/s
Conveyor Height: 300 mm
Max Load: 200 Kg
Wire Resolution:42AWG
Steel Penetration:35 mm
Image Storage Capability:Up to 50,000
Standard Functions:Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and training, etc.
Dimensions: 3595mm(L) × 1705mm(W) × 1835mm(H)
Storage Temperature / Humidity:-40Â°C ~ +60Â°C/ 5% ~95% (non-condensing)
Weight:1520 Kg
Operating Temperature / Humidity: 0°C ~+40°C / 5% ~95% (non-condensing)
Power Supply: 220VAC/110 VAC
Power Consumption: 1.5 kVA
