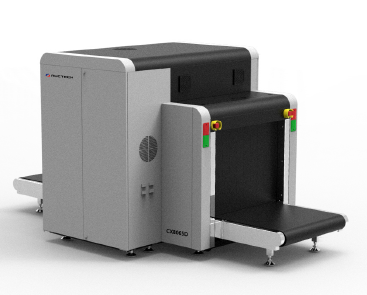

X Ray Baggage Scanner 8065D NUCTECH
KTI04023001N865

Make:Nuetech
Model No: CX8065D
Tunnel Dimensions:830mm(W) × 663mm(H)
Conveyor Speed:0.20 m/s
Conveyor Height: 300 mm
Max Load: 200 Kg
Wire Resolution:38AWG
Steel Penetration:35 mm
Display Resolution:1280 x 1024
Image Storage Capability:Up to 50,000
Standard Functions:Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and training, etc.
Dimensions: 3000mm(L) × 1525mm(W) × 1500mm(H)
Storage Temperature / Humidity:-40Â°C ~ +60Â°C/ 5% ~95% (non-condensing)
Weight:1430 Kg
perating Temperature / Humidity: 0°C ~+40°C / 5% ~95% (non-condensing)
Power Supply: 100VAC ~ 240VAC (-15% ~ +10%)，50 Hz/60Hz ±3Hz
Power Consumption: 1.2kVA
