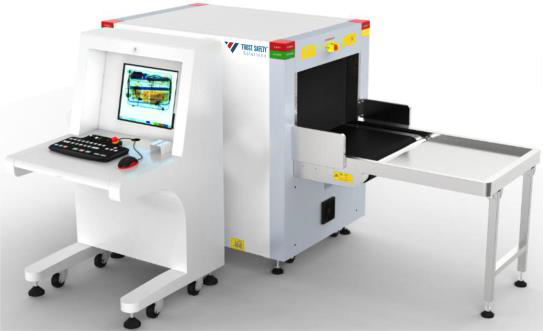

X-Ray Baggage Scanner
Model: Trust Safety Solutions 6550
(Tunnel Size:-650x500mm)
Features:
• Linux Operation System
• ARM CPU
• Digital signal and processor
• Continuous hard work for 10000 hours
• Energy saving design
• High penetration
• Good quality images
• Automatic Built in Test and Self Diagnosis
• Secure Access Key
Unit weight 420 (kgs)
Product Size 2808.5* 902 * 1362.5mm (L × W × H)
Tunnel Size 659.4* 503.85mm (width × height)
Wire Resolution - Typical AWG40
Penetration Resolution Typical - AWG32
Spatial Resolution Vertical -1.0mm; Horizontal 1.0 mm
Penetration Typical - 8mm
X ray dose per each inspection ≤ 2.0 μGy
Boundary Leakage ≤ 0.5 (μGy/h)
S/N Ratio < 60dB
Conveyor Speed 0.2(m/s)
Conveyor Max Load 150(kgs)
Power Consumption 0.58 KW
Leakage current ≤ 5.0mA
Film Safety Guarantee ASA/ISO 1600 Film
Operation temperature/Humidity 5℃-40℃ / 0%-90%
Storage Temperature/Humidity -20℃ - 60℃ / 10%-90%
Operation Power 220VAC(±10%-15%) 50±3Hz
Outfeed Table Included
✓ Monitor Included
