X Ray Baggage Scanner 6040 Zkteco

X Ray Baggage Scanner 6040 Zkteco
KTI040230026040

Make:Zkteco
Model No:6040
Tunnel Size:610 mm (W) x 420mm (H)
Conveyor Speed: 0.20 m/sec ~ 0.40m/sec
Load on Conveyer: Max 200 kg (Evenly Distributed)
Space Defintion:HorizontalΦ1.0mm VerticalΦ2.0mm
Steel Penetration: 38mm Guaranteed; 40mm Typical
Wire Resolution: 38AWG Guaranteed; 40AWG Typical
Dual-energy detector: Yes
Number of Colors in X-ray Image: 3

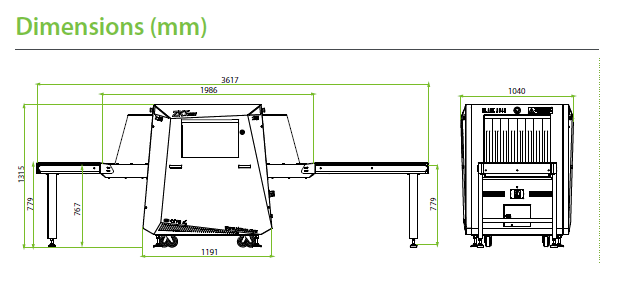

Dimensions(L*W*H): 3617mm*1040mm*1315 mm
Package Dimensions(L*W*H): 2100mm*1200mm*1600 mm
Package Weight: 750kg
Film Safety: ASA/ISO1600 standard of film safety Single Inspection Dosage Rate: ≤1.0μGy
Monitor: 21” LED color
Memory: 8 GB DDR4
Hard Drive: 240GB SSD+1TB HDD
Graphic Card: NVIDIA GeForce GTX 1660 Ti
USB Port: 4 ports
Operating Temperature: -10°C to +45°C
Storage Temperature: -20°C to +60°C
Humidity: 5-95%, non condensing
Power Supply:230 VAC +/- 10% / 60/50 Hz (EU)
Power Consumption: 700W
Sound Pressure: <51.8dB (A)
Warranty: 1 Year
