 Outfeed Table Included
 Monitor Included
 Installation and Training (1day)
 One Year Warranty

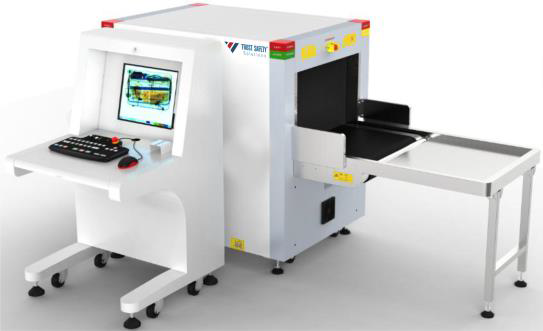

=6040 (TSS 6040) is specifically designed to meet the needs and applications of airports, prisons, railways and subways, stadium, courts, parcels service or wherever high security is required.
Features:
• Linux operation system
• ARM cpu
• Digital signal and processor
• Continuous working 10000 hours above
• Energy saving design
• High penetration
• Good quality images
• One key turn off
Unit weight -450 Kgs
Product Size - 2648* 844 * 1234mm (L × W × H)
Tunnel Size -600* 400mm (width × height)
Wire Resolution - Typical AWG40
Penetration Resolution - Typical AWG34
Spatial Resolution -Vertical 1.0mm; Horizontal 1.0 mm
Penetration - Typical 30mm
Resolution of organic matter 1 - 120 mm
Grayscale and mixture resolution - 1-40mm
Resolution of inorganic objects - 0.2-14mm
X ray dose per each inspection - ≤ 2.5 μGy
Boundary Leakage - Boundary Leakage
S/N Ratio < 60dB
Conveyor Speed 0.2 (m/s)
Conveyor Max Load 180 (kgs)
Power Consumption 0.5KW
Leakage current ≤ 5.0mA
Film Safety Guarantee ASA/ISO 1600 Film
X-ray Generator
X ray generator - 140KV, Oil Cooling, From Bottom To Top
Electric Roller - One-phase
Computer Hard drive: 500G, Storage : 1G
Warranty: 1 Year
