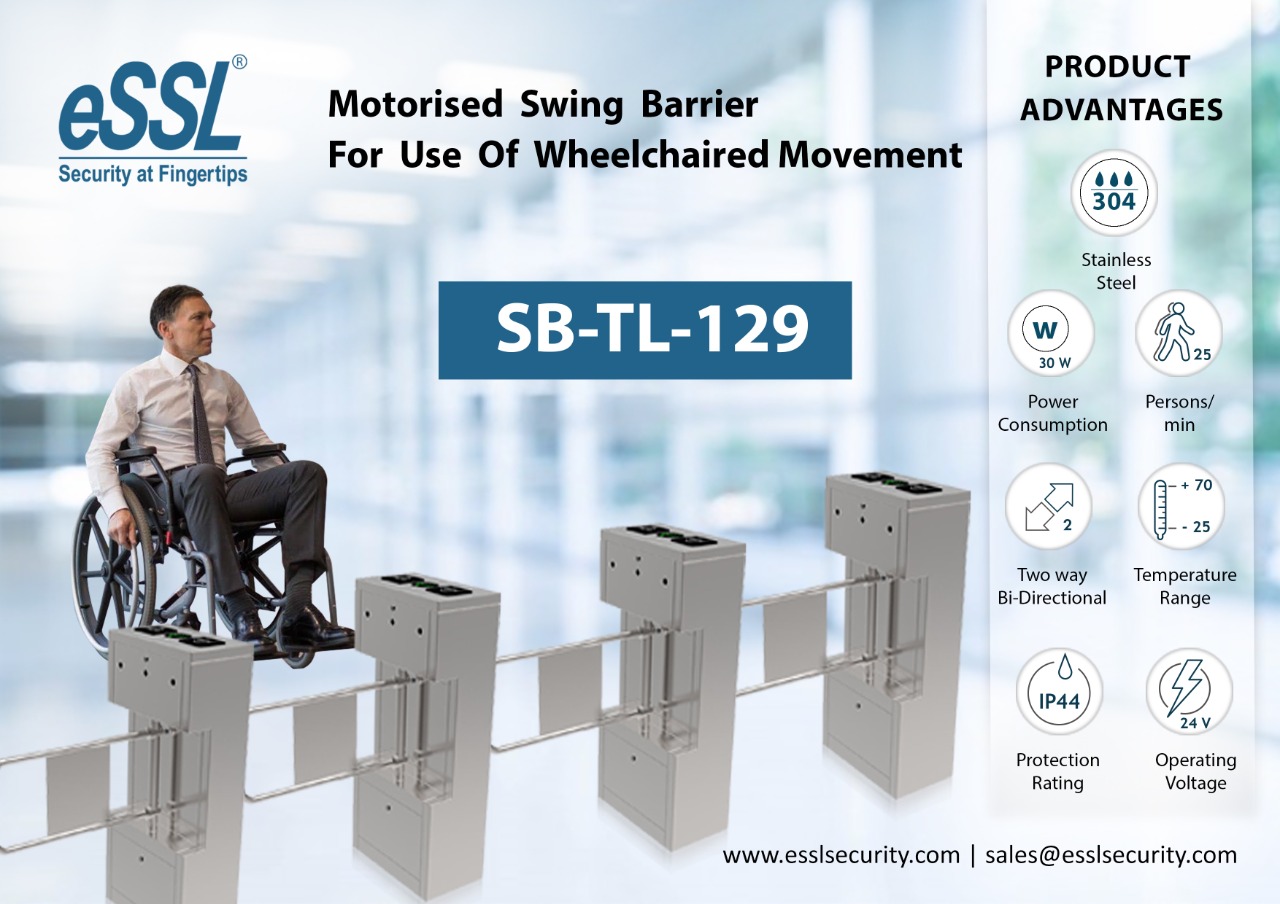

Swing Barrier SBTL 129
Swing Barrier SBTL 129
Swing Barrier SBTL 129
Swing Barrier SBTL 129 Swing Barrier SBTL 129

Swing Barrier SBTL 129

KTI0200800SBTL9

Model No.: SBTL 129
Passage width (Max) : ≤ 550mm,
Throughput rate : 30 p/m,
New Weight(Including Bars):40kg,
Dimension excluding bars:800 X 480 X 980MM
Passage width (Max) : ≤ 550mm
Throughput rate : 30 p/m
Power supply : 100 ~ 240V
Operational voltage : 24V
Max Power Consumption : 30 W
Frequency : 50 ~ 60hz
Protection Level (IP) : 54
Working temperature : -25°C ~ +70°C
Electro - magnetic drive : DC
Dimension excluding bars : 800 X 480 X 980 mm
New Weight (Including Bars) : 40kg
Use IC cards, ID cards, bar code or magnetic cards as automatic identification system
Display has been in use for statistics and numbers With voice and strobe light alerts
A combination of infrared sensors and police anti-illegal entry into pedestrian access
Double anti-clipping function, photocell anti-clipping and mechanical anti-clipping
The barrier can be set to delay closing in 1 ~ 60s after a valid card reading
Single passage in the set direction
Bi-directional single passage
Plastic toughened glass
Always free or locked

Read More

Swing Barrier SBTL 129

KTI0200800SBTL9

Price
₹ 72,500.00 excl. GST
+ 18.00% Tax + Freight Charge
If you are an existing KTI Customer, Sign In to view your special price

Specifications for this item

  • Unit
  • HSN Code
  • Weight
  • Warranty
  • Tags/categories

Usually dispatched within 20 days Ready Stock
