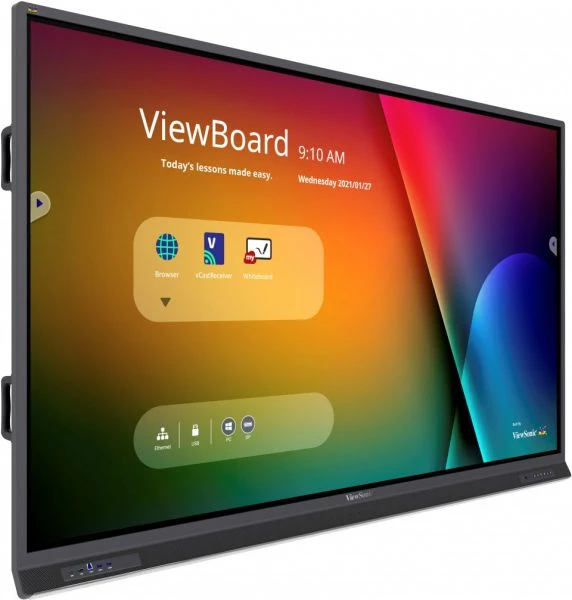

IFP52 Series 86 Smart Intelligent Boards

8347888384

contact[at]ktindia[dot]net

IFP52 Series 86 Smart Intelligent Boards

IFP52 Series 86 Smart Intelligent Boards
KTI12006052VS86

IFP8652-A/IFP8652-1B
Panel Size: 86" Panel Type: TFT LCD Module with DLED Backlight Display Area (mm): 1895.04(H) x 1065.96(V) Aspect Ratio: 16:9 Resolution: UHD 3840x2160(Pixels) Colors: 1.07B colors (10bit) Brightness: 400 nits (typ.) Contrast Ratio: 1200:1 Typ. , 5000:1 Max.(DCR enable) Response Time: 8ms Viewing Angles: H = 178, V = 178 typ. Backlight Life: 50,000 Hours (Typ.) Surface Treatment: Hardness: 9H with Anti-Fingerprint coating & Anti-Glare coating Processor: ARM Cortex A73*4 RAM: 4GB (IFP8652-1A), 8GB (IFP8652-1B) Storage: 32GB (IFP8652-1A), 64GB (IFP8652-1B) Type/ Tech: UFT (Ultra Fine Touch) Technology Touch Resolution: 32767 x 32767 Touch Point: Windows: 33 points touch, Android: 20 points touch RJ45: x1 Type A: USB 2.0 x1(Side x1), USB 3.0 x4 (Front x2, Side x2, SmartPort™ USB) Type B: x2, for touch Type C: x1 (USB3.0, DP1.2 Alt Mode, Ethernet, PD 60W) built-in 8-array microphone Embedded OS Android 9 OPERATING CONDITIONS Temperature (º C): 0°C to 40°C Humidity: 20% ~ 80% RH Non-Condensing
