Door Frame Metal Detector for Non Ferreous Material 6 Zone

8347888384

contact[at]ktindia[dot]net

Door Frame Metal Detector for Non Ferreous Material 6 Zone

Door Frame Metal Detector for Non Ferreous Material 6 Zone
KTI12001003HS70

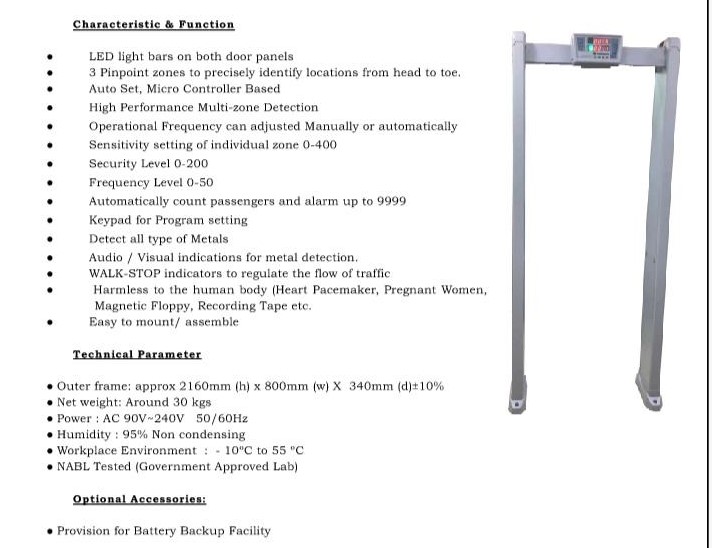

Door Frame Metal Detector -6 zone
Model : 800249C Suitable for Non Ferous Material
Samples of Metal to be Detected for setting is recommended
LED Light Bars on both Doors
3 Pin point zones to precisely identify locatinons from head to toe.
auto set, Micro Controller based
High Perfromance Multizone Detection
Operationa;l frequency can adjustV manualy and automatically
Sensitivity setting of Individual Zone 0-400
Security Level 0-200
Frequency Level - 0-50
Automatically count Passengers and alarm up to 9999
keypad for Program Setting
Walk- Stop Indicators to regulate the flow of Traffic
Easy to Mount /Assembly
Outer Frame - Approx 2160 mm (h) X 800mm (W) X 340 Mm (D)
Power - AC 90V-240V 50/60 Hz
Workplace environment - +-10 Degree C to 55 Degree C
NABL Teted (goverment approved Labs )
*230V Supply near DFMD in client Scope *No any Metal Part and other DFMD in 2 meter area of DFMD *Metal Detector will detect Farrous Metal if you wish to detect Non Ferrous you have to inform in advance for Modification in DFMD. However in case of non ferrous you have to ensure that person does not carry other Material within Video for Non ferrous is attached for your reference Installation rate is for one visit if additional visit required will be charge Extra
Warranty : 1 year
