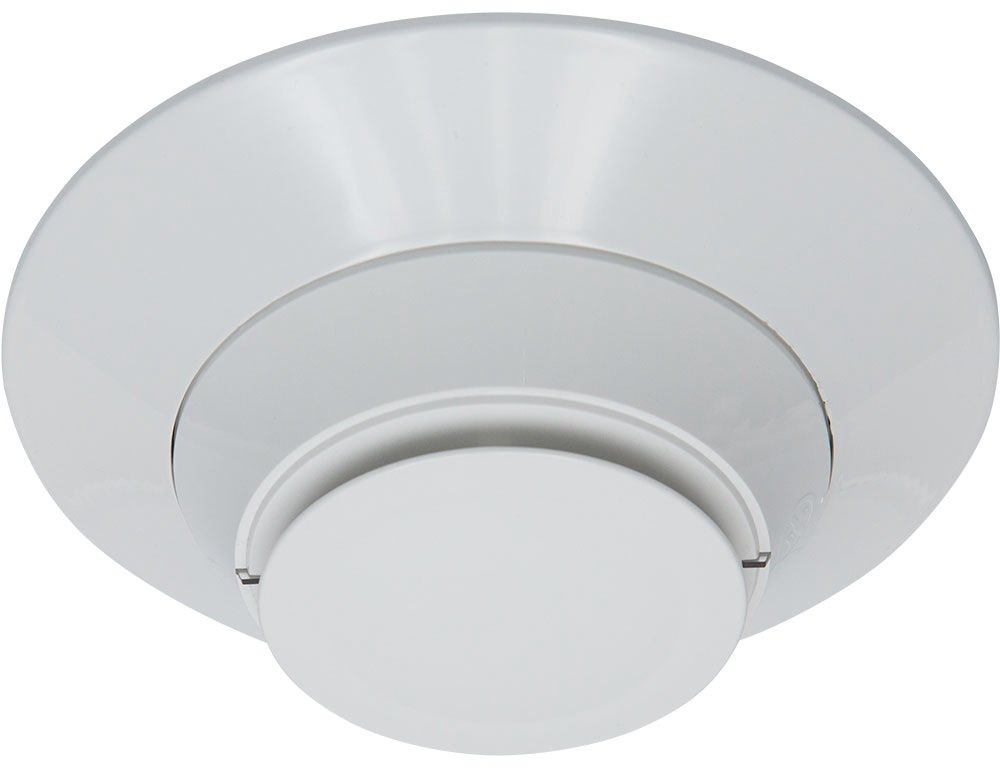

Model No. : RE 317D - SHL
* FEATURES
UL listed
Dual LED’s for 360 visibility.
Advanced detection and communication protocol.
Easy installation and maintenance.
Sleek low-profile housing design.
Regular 100mm base.
Address setting by 8 digit DIP switch

Operating Voltage : 17 ~ 28V DC
Reset Voltage : less than 3V
Standby Current : 500 µA..
Alarm Current : 5 mA
Start Up Time : 30s.
Remote Output : 2mA maximum open collector
O O Operating Temperature : -10 C to 37.8 C
O
Humidity : 0 - 95% RH, non-condensing
Smoke Sensitivity : (2.12 ± 0.61) % / ft
High : 1.1% ft
Middle : 1.4% ft
Low : 2.3% ft
Air Velocity : 0 - 4000 fpm

Mechanical Specification:
Height : 46 mm with base
Diameter : 100 mm dia
Weight : 150g with base
IP Rating : IP - 42
* Warranty:- 1 Year
