Product Description

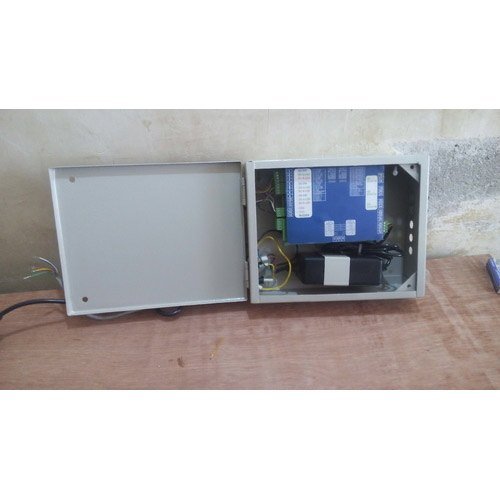

The Interlocking System 2 Door Controller is an electronic access control relay module designed to govern sequential two-door interlocking and airlock security protocols.

  • Make/Brand: OEM
  • Power Supply: 12V DC input via dedicated terminal connector CON1
  • Relay Outputs: 2 independent Form C relay channels (NO, COM, NC) for Lock 1 and Lock 2
  • Input Channels: 4 digital trigger inputs (Door 1 Entry, Door 1 Exit, Door 2 Exit, Door 2 Entry) paired with GND
  • Sensor Feedback: 2 dedicated magnetic door sensor feedback inputs (Sensor 1 NC/COM, Sensor 2 NC/COM)
  • Emergency Override: Dedicated emergency input channel to permanently release both doors until hardware reset
  • Output Delay Settings: Hardware 3-bit DIP switch selectable delay (5s, 10s, 15s, 20s, 25s, 30s, 35s)
  • Door Ajar Alert: Audible long-beep alarm if door sensor feedback is not received within 2 minutes of opening
  • Status Indicators: Onboard diagnostic LEDs for Power (PWR), Heartbeat (HB), Inputs (L1–L5), Outputs (L6, L7, L10), and tactile RESET button
  • Field Terminals: CON1 (12-pin) and CON2 (10-pin) screw terminal blocks
  • Compatibility: Fail-safe electromagnetic locks, drop bolts, fail-secure electric strikes, dry-contact push buttons, and access readers

Interlocking System 2 Door Controller

KTI01003001E2DI

5.0

  • ★
  • ★
  • ★
  • ★
  • ★

1 ratings

Price
₹ 14,715.00 excl. GST
+ 18.00% GST. Freight after pincode at cart.
Product Details
Available Brands Essl, Biomax
Unit Numbers
HSN Code 85437099
Weight 0.35 kg
Warranty 12 Months No-Onsite Warranty
