Product Information

Attribute

Value

Watt

Upto 80 Watt

Voltage

12 V

Size

8 Inch

Battery

Rechargeable

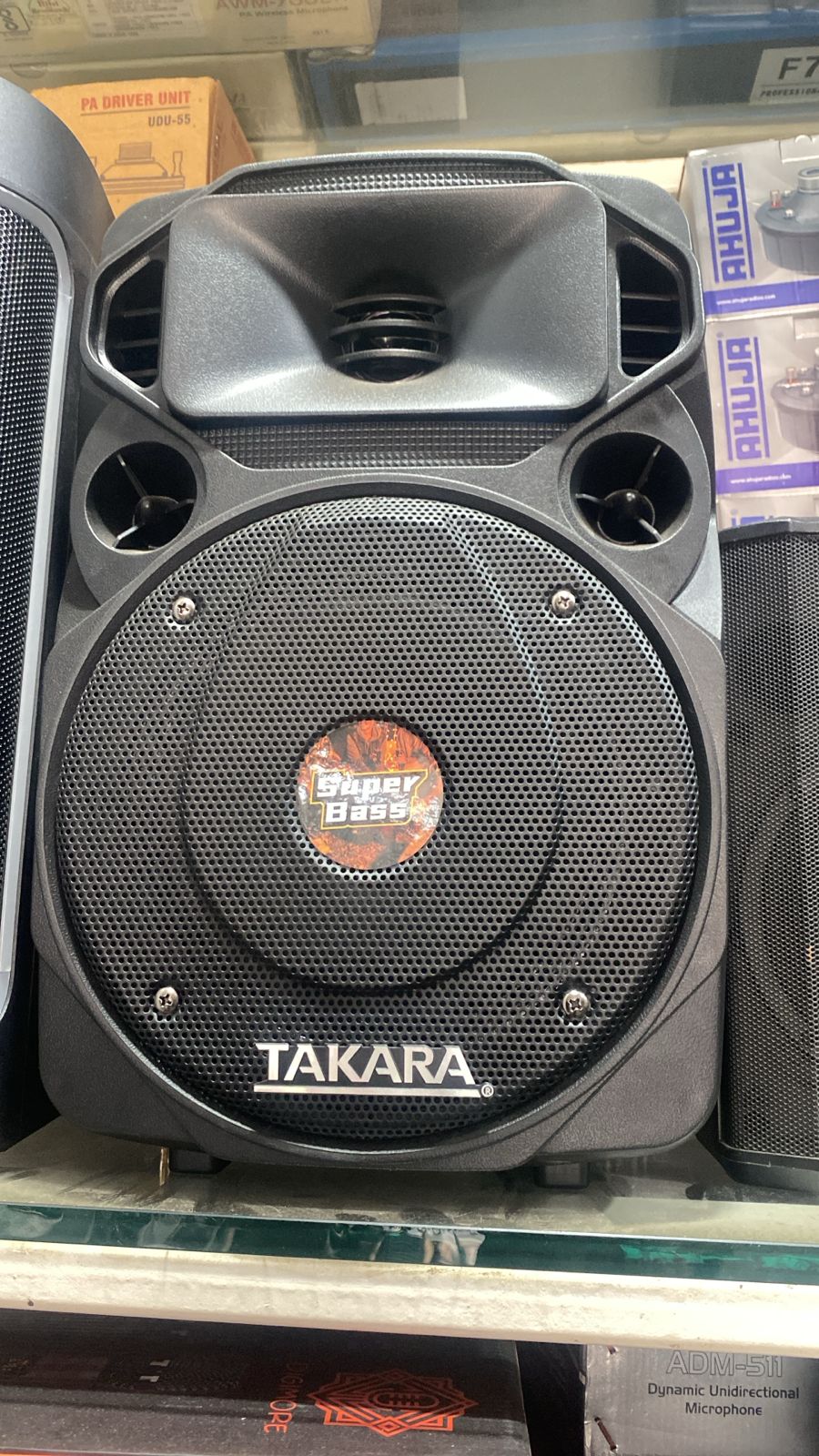

Takara T 6008 8inch Portable Trolley Speaker

KTI140060016008

Product Description

The Takara T 6008 is a compact, high-performance 8-inch portable trolley PA speaker system engineered for mobile public addressing, corporate announcements, training sessions, and small-to-midsize event gatherings.

Brand / Manufacturer: Takara
Model: T 6008
Speaker Driver: 8-inch Full Range Woofer with dedicated high-frequency tweeter
Power Output: 40W RMS
Wireless Microphones: 2 x VHF wireless cordless handheld microphones included
Wired Inputs: 1 x 6.35 mm (1/4") microphone input, guitar/instrument input, 3.5 mm AUX input, RCA
Media Playback: Bluetooth 5.0, USB MP3 player, SD/TF memory card reader, FM tuner
Recording Function: Direct voice/audio recording to USB flash drive or SD card
Audio Adjustments: Master volume, Mic volume, Mic echo control, Bass & Treble tone controls
Power Source: Built-in rechargeable Lithium-ion battery (4 to 5 hours runtime) and 12V DC input
Form Factor: Floor-standing ABS trolley enclosure with retractable pull handle and heavy-duty wheels
Dimensions & Weight: 26 x 30 x 48 cm; 4.8 kg

KTI140060016008

Price

₹ 7,357.50 excl. GST

+ 18.00% Tax + Freight Charge

If you are an existing KTI Customer, Sign In to view your special price

Product Details
Available Brands	Takara
Unit	Numbers
HSN Code	85198920
Weight	4.8 kg
Dimension	L 26 x W 30 x H 48 cm cm ft in m
Warranty	12 Months No-Onsite Warranty
Tags/categories	Automation PA Solutions Portable Trolly Trolley Speakers

Usually dispatched within 8 days

About this product .

The Takara T 6008 Portable Trolley Speaker is an integrated, self-powered public address and multimedia sound system designed for mobility and clear acoustic output. Built around an 8-inch primary woofer paired with a dedicated tweeter, the system delivers 40 Watts RMS of crisp vocal clarity and balanced low-end response suitable for speech reproduction, music playback, and multimedia presentations.
Equipped with dual VHF wireless handheld microphones, the unit allows seamless multi-speaker presentations, live addressing, and vocal performances straight out of the box. Additional 1/4-inch wired microphone and dedicated guitar inputs enable expanding audio sources, while individual mic volume, rotary echo control, and separate bass and treble tuning dials ensure precise acoustic customization for any venue acoustics.
Comprehensive digital media support includes an integrated Bluetooth receiver for wireless streaming from mobile devices, tablets, and laptops, alongside a built-in MP3 player supporting USB flash drives and SD/TF cards. The integrated audio recording feature enables users to record live speeches, training sessions, or meetings directly onto external storage media with single-touch operation.
Engineered for full standalone operation in field and indoor environments, the speaker integrates an internal rechargeable lithium-ion battery delivering 4 to 5 hours of continuous playback on a single charge. It also supports standard AC charging and optional external 12V DC input connections, ensuring uninterrupted operation during extended power outages or remote outdoor deployments.
The durable ABS enclosure is built in a suitcase trolley configuration, featuring a retractable telescopic pull handle, top carrying handle, and integrated rolling wheels for effortless transport across conference rooms, auditoriums, outdoor grounds, and industrial facilities.

Product Information .

Party Plots, Gardens Event Management Auditorium Conference Hall

Audio Source, Input Interface, and Media Format Compatibility

The Takara T 6008 (T-6008) 8-inch portable trolley PA speaker is engineered with a 3-channel audio architecture designed to interface seamlessly with a broad spectrum of commercial playback devices, digital media storage formats, wireless broadcast signals, and live performance equipment. This broad compatibility profile ensures flexible deployment across industrial briefings, corporate workshops, public address applications, and retail environments.

Wireless Signal and Device Pairing Compatibility

The integrated wireless subsystem provides high-stability connectivity across digital and radio frequency bands:

Bluetooth Connectivity: Wirelessly pairs with any standard Bluetooth-enabled mobile device, including enterprise laptops, smartphones, tablets, and dedicated digital audio players for streaming announcements, pre-recorded presentations, or background audio.
VHF Wireless Microphones: Operates natively with the two included cordless VHF wireless microphones, facilitating automatic transmission to the speaker's internal receiver without requiring external tuning hardware or supplementary transceiver stations.
FM Broadcast Reception: Features an integrated FM radio tuner compatible with standard regional frequency bands for direct over-the-air audio monitoring.

Physical Audio Input and Instrument Interfacing

For hardwired installations and multi-source setups, the Takara T 6008 supports analog line-level inputs, dedicated microphone cabling, and direct instrument integration:

Line-Level Auxiliary Inputs: Equipped with Aux connectivity across 3.5mm, RCA, and XLR connection types to interface directly with analog mixing consoles, personal computers, media players, and external CD or AV decks.
1/4-Inch (6.35mm) Instrument & Microphone Jack: Accommodates standard dynamic wired microphones as well as 1/4-inch high-impedance instrument cables connected to acoustic-electric guitars or electric guitars, permitting simultaneous voice and instrument amplification.
Multi-Channel Mixing: Allows simultaneous operation of wireless VHF microphones, wired microphones or guitars, and auxiliary or Bluetooth audio tracks through the 3-channel system.

Storage Media, Format, and Recording Compatibility

The Takara T 6008 features onboard digital playback and media capture interfaces, eliminating the need for connected computers during standalone operations:

Flash Storage Formats: Fully compatible with standard USB flash storage drives and SD/MMC memory cards.
Audio Decoding: Natively decodes and plays back standard MP3 audio files stored within connected USB or SD/MMC media.
Integrated Audio Recording: Built-in direct recording functionality captures live speech, microphone vocal input, or instrument feeds straight onto connected USB storage drives or SD memory cards for instant archiving of safety briefings, training sessions, or live events.

Interface & Control Compatibility Summary

Interface / Connector	Compatible Equipment & Formats	Signal / Functional Type
Bluetooth Inbuilt	Smartphones, tablets, laptops, portable media players	Wireless digital streaming
VHF Receiver	2x Included cordless VHF wireless microphones	Dual-channel wireless voice transmission
USB & SD/MMC Ports	USB flash drives, SD/MMC cards (MP3 files)	Digital audio playback & live audio recording
1/4-Inch (6.35mm) Jack	Dynamic wired microphones, electric / acoustic-electric guitars	Analog high-impedance audio input
Aux (3.5mm / RCA / XLR)	Mixers, AV decks, laptops, media players	Analog line-level stereo/mono input
Remote Control Interface	Included handheld remote control unit	Infrared / wireless system control

Setup, Integration, and Deployment Guide for Takara T-6008 Portable PA System

System Placement and Physical Setup

The Takara T 6008 (T-6008) is an integrated, 3-channel portable public address and audio reinforcement system engineered in a heavy-duty molded ABS plastic housing. Weighing 4.8 kg and measuring 300 x 265 x 480 mm (26 x 30 x 48 cm), the unit is configured for floor-standing operation across plant floors, seminar rooms, commercial retail floors, and outdoor briefing areas. Place the cabinet upright on a level, dry, and stable floor surface to ensure maximum acoustic dispersion from the 8-inch woofer and high-frequency tweeter assembly. For rapid repositioning across industrial facilities, utilize the integrated top trolley handle and durable rear transport wheels.

Power Supply and Battery Charging Procedure

Before initial deployment or field operations where mains power is unavailable, fully charge the internal 12V rechargeable Lithium-ion battery pack. Connect the supplied AC power charging adapter to the DC power input on the control panel and plug it into a standard mains outlet. A complete charge cycle enables approximately 4 to 5 hours of continuous standalone playback. When deploying the unit during continuous operational shifts or indoor stationary events, the system can remain connected to the charging adapter while actively delivering audio output.

Wireless Microphone Setup and Synchronization

The Takara T-6008 includes two handheld cordless VHF wireless microphones for clear vocal reproduction during announcements, safety briefings, and training sessions:

Unscrew or slide open the battery compartment on each VHF wireless microphone and insert standard batteries observing correct terminal polarity.
Slide the microphone power switch to the ON position. The microphones operate on dedicated VHF frequencies that establish an automatic wireless connection with the internal VHF receiver module.
Maintain a clear line of sight between the wireless microphones and the speaker unit to optimize VHF transmission range and prevent radio-frequency dropout.
Adjust the dedicated MIC. VOL (Microphone Volume) and ECHO rotary dials on the main control panel to achieve balanced speech intelligibility without acoustic feedback.

Wired Audio Inputs and Instrument Integration

The unit features versatile analog connection points on its master control interface for multi-source integration:

Wired Microphones and Instruments: Plug a dynamic wired microphone or an electric/acoustic-electric instrument into the dedicated 1/4-inch (6.35 mm) input jack.
Line-Level Auxiliary Input: Connect external audio hardware—such as laptops, media players, or mixing consoles—using standard 3.5 mm Aux or RCA / XLR audio cables directly into the auxiliary input terminal.
Digital Media Playback: Insert a standard USB flash drive or SD/MMC memory card loaded with MP3 audio files into the respective front-facing media slots.

Source Selection and Audio Tuning

Power on the master switch located on the control board. Use the Mode selection button (or the included remote control) to toggle between available audio input channels: Bluetooth (BT), USB, SD Card, FM Tuner, or Auxiliary (AUX). When pairing mobile devices via Bluetooth, select the Takara system on your host device's wireless setup menu. Balance system acoustics using the onboard equalization array, adjusting the BASS and TREBLE dials to suit speech clarity or music reproduction, followed by setting the MASTER VOLUME dial to the required acoustic output level up to 40W RMS. To capture meetings or vocal presentations, engage the onboard recording function to record speech directly to an inserted USB drive or SD card.

Takara T 6008 Portable PA Speaker Diagnostic and Operational Troubleshooting Guide

This diagnostic guide outlines systematic troubleshooting procedures for technical coordinators, facility managers, and AV operators deploying the Takara T 6008 (T-6008) 8-inch portable trolley PA speaker. Following standard inspection workflows ensures consistent acoustic output, stable wireless VHF connectivity, and reliable power distribution across industrial plant floors, training facilities, and corporate environments.

Power Delivery and 12V Battery Management

If the Takara T-6008 fails to power on or shuts down prematurely during mobile operations, evaluate the internal power architecture:

Total Power Failure: Inspect the main power switch on the control panel. Connect the dedicated AC power charging adapter to verify if the internal 12V rechargeable Lithium-ion battery has fully discharged below the operating threshold.
Short Battery Runtime: A full charge cycle provides approximately 4 to 5 hours of continuous operation. Ensure the charging adapter is connected to a live mains supply and allowed to complete a full charging cycle before mobile deployment without continuous mains power.
Intermittent Power During High-Volume Use: High acoustic output driven by the 40W RMS amplifier demands stable current. If the battery charge is critically depleted, heavy bass transients may cause voltage dips; connect the AC power adapter directly to stabilize current delivery.

Audio Output and Input Source Routing

When the 8-inch woofer and high-frequency tweeter produce low audio or no sound output across the 3-channel system:

Mode Selection Mismatch: Use the interface buttons or handheld remote control to toggle through audio input modes (Bluetooth, USB, SD/MMC, FM, or AUX). The system will not output audio from external lines if the source channel is set to an inactive input mode.
Master and EQ Level Settings: Verify that the rotary Master Volume dial is rotated clockwise to an adequate gain level. Inspect the dedicated Bass and Treble dials to ensure frequency equalization is not attenuated to minimum settings.
Bluetooth Signal Drops: Ensure the transmitting mobile device or laptop is within standard operating range and free of major physical obstructions. Disconnect and re-pair the Bluetooth profile if stream buffering occurs.
USB / SD Card Playback Failure: Ensure external flash memory drives or SD/MMC cards contain standard MP3 audio files. Drives formatted with incompatible partition schemes or non-MP3 codecs will fail to initialize.
Aux / Analog Input Attenuation: When interfacing via RCA or 3.5mm Aux line cables, confirm the sending device (such as an external mixer or laptop) has its hardware output set above 75% gain to deliver sufficient line-level signal.

VHF Wireless and Wired Microphone Diagnostics

Issues related to vocal projection, speech distortion, or signal dropouts across the dual VHF cordless microphones and 1/4-inch wired mic/guitar input should be addressed through the following steps:

VHF Wireless Mic Dropout or Static: Check and replace the internal batteries in the cordless VHF microphones. Ensure line-of-sight between the microphones and the speaker housing, avoiding proximity to high-frequency industrial electromagnetic interference sources.
Acoustic Distortion and Clipping: If speech or singing output distorts through the 40W RMS amplifier, decrease the dedicated Microphone Volume (Mic Vol) dial on the control interface. High input gain causes preamp clipping.
Excessive Reverberation: Adjust the dedicated Mic Echo control counter-clockwise to reduce vocal echo feedback during standard spoken word briefings or boardroom presentations.
Wired 1/4-Inch Input Inactivity: When connecting dynamic microphones or acoustic-electric instruments via the 1/4-inch jack, confirm the connector is fully seated and that any hardware switches on the connected instrument or microphone are set to the active position.

USB/SD Direct Voice Recording Failures

If vocal capture or speech recording to external media fails during meetings or presentations:

Ensure a compatible USB drive or SD/MMC card with available storage capacity is firmly seated in the slot.
Engage the recording function according to control panel prompts while speaking into an active VHF or wired microphone; line-level input recording behavior depends on the active input mode selection.

Quick Operational Diagnostic Matrix

Fault Condition	Probable Cause	Corrective Action
No sound output across all channels	Master volume zeroed or wrong input mode selected	Adjust Master Volume dial; toggle mode selector to match input (BT/USB/SD/AUX/FM).
VHF wireless mic silent	Dead microphone batteries or channel gain closed	Replace VHF transmitter batteries; advance dedicated Mic Volume dial on the panel.
USB / SD media unreadable	Unsupported file format or unseated storage media	Re-seat media drive; verify tracks are encoded in standard MP3 format.
Rapid battery depletion	Incomplete charge cycle or prolonged storage drain	Perform full recharge cycle using dedicated AC adapter; recharge periodically during storage.
Harsh vocal echo during speech	Echo dial set too high for spoken dialogue	Turn the dedicated Microphone Echo dial counter-clockwise to minimize delay effect.

Operational Applications and Deployment Scenarios for the Takara T-6008

Industrial Plant Briefings, Safety Drills, and Tool-Box Meetings

The Takara T-6008 portable trolley PA speaker is engineered to deliver clear, intelligible voice reinforcement across noisy shop floors, staging yards, and warehouse distribution centers. Featuring a 40W RMS output driven by an 8-inch primary woofer paired with a high-frequency tweeter, the unit cuts through ambient industrial background noise during daily shift handovers, emergency evacuation drills, and routine tool-box safety briefings.

Its integrated 12V rechargeable lithium-ion battery provides between 4 and 5 hours of continuous cord-free operation. This enables site supervisors, safety managers, and plant engineers to conduct mandatory briefings in remote production bays, loading docks, or active construction sites where mains AC power drops are inaccessible or present cable-trip hazards.

Corporate Training Sessions, Seminars, and Educational Workshops

In corporate boardrooms, temporary classroom setups, and multi-purpose training halls, the T-6008 serves as a versatile, self-contained sound reinforcement hub. Presenters can interface laptops, tablets, or multimedia projectors via the auxiliary inputs (RCA / 3.5mm / XLR) or connect wirelessly via Bluetooth to stream audio accompanying slide decks and instructional video materials.

The dual included VHF wireless microphones facilitate dynamic interactions, panel discussions, and Q&A sessions without requiring manual microphone passing or cable management. Furthermore, the unit’s integrated recording function allows facilitators to capture live vocal lectures, training modules, or meeting proceedings directly onto an inserted USB flash drive or SD/MMC memory card for archival and compliance logging.

Commercial Retail Activations, Showrooms, and Outdoor Promotions

Commercial marketing teams and facility administrators deploy the Takara T-6008 for on-floor retail product launches, pop-up promotional displays, and open-air commercial demonstrations. The rugged molded ABS plastic cabinet, combined with a built-in retractable trolley handle and durable rear transport wheels, allows a single operator to transport the 4.8 kg unit across showroom floors, trade exhibition aisles, or outdoor retail forecourts.

With dedicated dials for Master Volume, Treble, Bass, Mic Volume, and Echo, operators can rapidly tune speech clarity to compensate for reflective tile or open-air acoustic dispersion. Background promotional tracks can play continuously through the onboard USB MP3 player, SD card reader, or FM radio tuner while staff deliver product announcements through the VHF cordless microphones.

Facility Recreation, Public Events, and Live Instrument Amplification

Beyond routine public address, the 3-channel audio architecture accommodates live performances, corporate recreational functions, and employee engagement events. The speaker features an auxiliary 1/4-inch input dedicated to dynamic wired microphones or electric and acoustic-electric guitars, turning the unit into a standalone instrument amplifier.

Dual vocalists can utilize both cordless VHF microphones simultaneously alongside an instrument or backing audio track, making the T-6008 an adaptable audio platform for auditorium presentations, recreational stage vocals, and institutional gatherings.

Operational Environment	Primary Audio Configuration	Key Functional Benefit
Plant Floors & Warehouses	Dual VHF Mics + 40W RMS Speaker	High-clarity safety announcements over ambient industrial machinery noise
Training Centers & Seminars	Aux / Bluetooth + Direct Audio Recording	Simultaneous lecture amplification and speech recording to USB/SD storage
Showrooms & Pop-up Events	USB / SD MP3 Playback + Cordless Mic	Autonomous mobile background music mixed with live promotional address
Workplace Recreation & Auditoriums	1/4-inch Instrument Input + VHF Vocals	Multi-channel amplification for acoustic instruments and public address

Related Products .

Page 1 of 5

Syncing...

Compare with similar products .

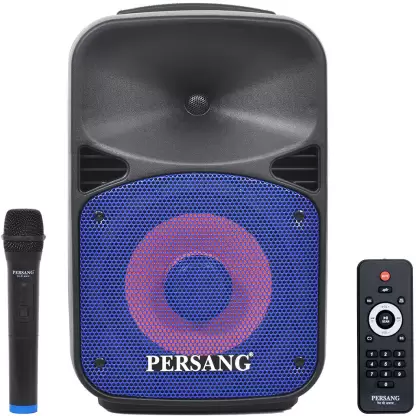

	Current Product Takara T 6008 8inch Portable Trolley Speaker	Trolley Speaker BTA 880 Ahuja	Trolley Speaker BH 1212BT	+ Add product to compare
