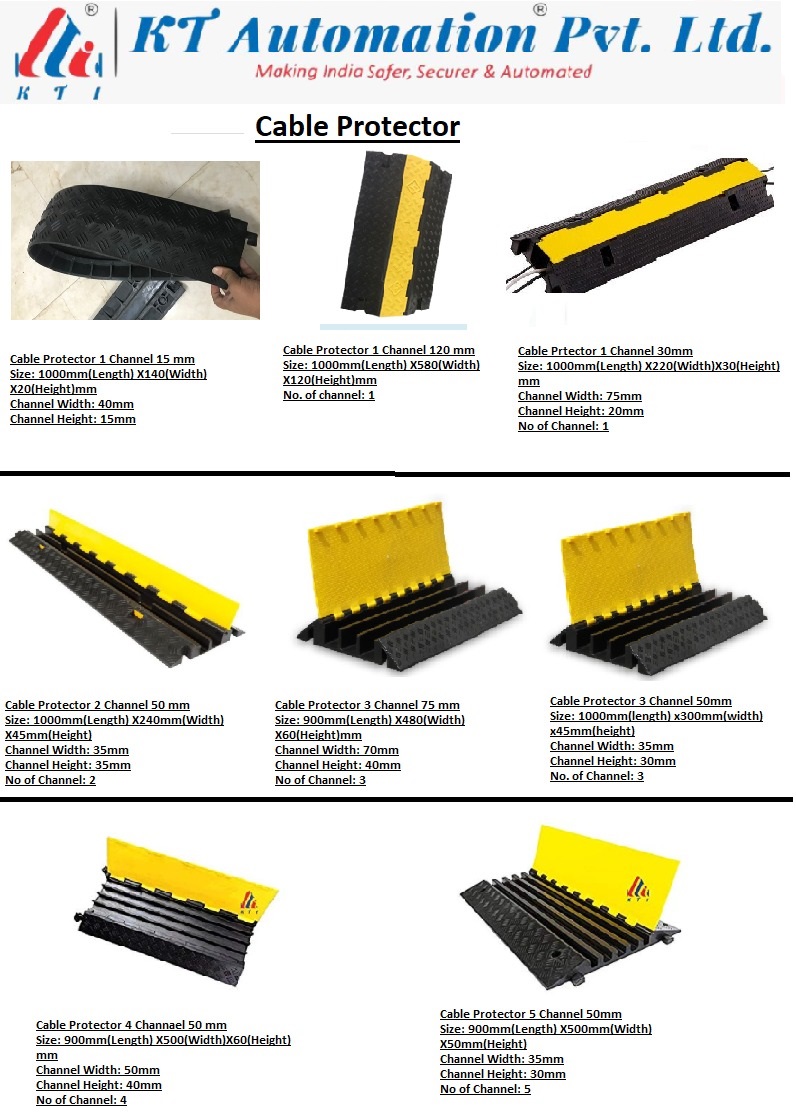

Surface Preparation and Positioning
Prior to deploying the KTI Cable Protector 4 Channel (SKU: KTI160040014CH5), inspect and prepare the designated ground surface. The 900 mm length by 500 mm width profile must rest entirely flat on indoor or outdoor flooring to prevent rocking or instability under transit. Clear all debris, aggregate, loose gravel, tools, and liquid spills from the path across factory floors, warehouse aisles, parking basements, construction site walkways, or stage setups.
Position the unit with the heavy-duty rubber base resting directly against the pavement or floor. Weighing 6 kg per unit, the heavy-duty rubber base maintains solid contact with the substrate during standard operational positioning. Ensure the unit is oriented perpendicular to the path of crossing pedestrian and vehicular traffic for smooth approach and transition over the 60 mm overall height profile.
Top-Loading Cable and Line Insertion
The KTI 4-channel protector features a top-loading design engineered for rapid placement without interrupting operational workflows. Technicians can install running lines without disconnecting power cords, terminating data lines, or depressurizing fluid hoses.
- Step 1: Open the Top Cover — Lift the hinged PVC and plastic composite top flap fully upward to expose all four internal raceways.
- Step 2: Segregate and Lay Lines — Place the cables directly downward into the individual 50 mm wide by 40 mm high channels. Run cables parallel through the pathways without bunching, twisting, or overlapping inside a single channel.
- Step 3: Close and Secure the Flap — Push the PVC and plastic composite lid firmly back down into its seated base recess. Confirm that the top flap sits completely flush with the top rubber casing to eliminate trip edges.
Channel Segregation and Capacity Guidelines
Each of the 4 discrete channels measures 50 mm in width and 40 mm in height. To maintain organized cable management across sensitive installations, utilize channel segregation practices:
| Channel Parameter |
Dimension |
Approved Utility Routing |
| Channel Width |
50 mm |
Heavy-duty temporary power distribution feeds, stage power runs |
| Channel Height |
40 mm |
Audio, video, lighting control multicore cables |
| Total Dedicated Channels |
4 pathways |
Industrial fluid hoses, IT network lines, fiber optic lines |
Application-Specific Deployment Workflows
In industrial facilities and manufacturing plants, deploy the protector across pedestrian walkways and vehicular transit routes to shield supply lines. In IT server rooms, data centers, commercial shopping complexes, hospitals, and clinics, position the unit to safeguard sensitive network lines and power feeds while providing a ramped transition for carts and foot traffic.
For outdoor events, trade shows, film productions, and temporary construction distribution, lay the rubber base directly on asphalt, concrete, or compacted event grounds. Keep adjacent runs aligned so utility lines feed straight into the channel chambers without lateral tension.
Post-Installation Check and Cleaning
Conduct a thorough physical inspection once lines are enclosed. Verify that no jacketed cables are pinched beneath the hinged PVC and plastic flap or underneath the heavy-duty rubber base. For ongoing site maintenance, the rubber base and composite cover can be washed in place using clean water and mild industrial detergents to remove accumulated dirt, mud, and grease.
