Wheel Stoppers for Parking Bays: How to Choose, Place and Install Them

Walk into any basement car park and you will see a guard waving his hands: "Little more. Straight. Stop!" Now imagine that repeated hundreds of times a day. A wheel stopper does the same job without the guard. The tyre rolls gently against it and the vehicle stops in the same place every time, clear of the wall, the pillar and the walkway. This guide covers the full KTI range of rubber and plastic wheel stoppers and the parking accessories that go with them (pillar guards, mirrors, line marking, parking posts and wheel chocks), how to choose the right size and material, how to place and install them, and what to fit at different kinds of sites.

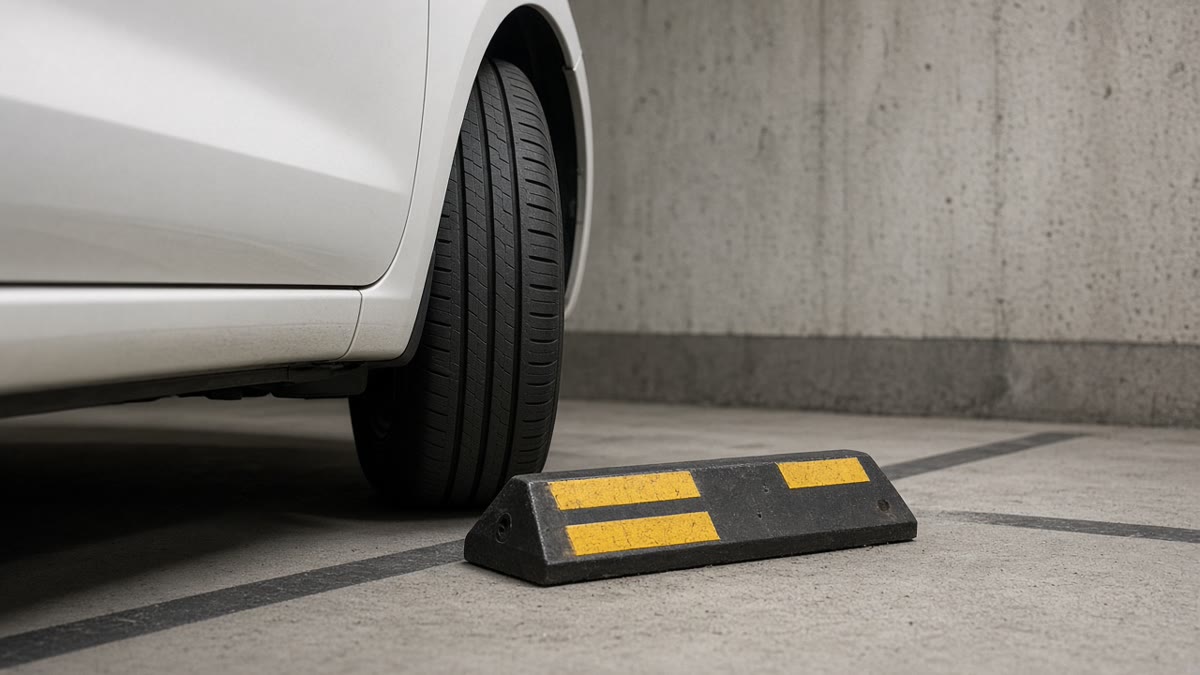

The tyre meets the stopper and the car stops in the same place every time, clear of the wall.

Choose the right wheel stopper

How to choose

Rubber stoppers are the most popular choice. They absorb impact, don't rust or crack in sun and rain, and are easy on tyres. Plastic stoppers such as the PS 803 are light and suit low-speed, light-duty bays. For length, use two short stoppers (500 or 600 mm), one behind each wheel, in standard car bays. They use less material and let water drain between them. Use one long stopper (1600 mm or 1800 mm) where vehicles of different widths use the same bay. For height, 100 mm suits most cars. Pick a 125 mm stopper for SUVs and larger vehicles, but check that low cars won't scrape their bumpers. In dim basements, choose a stopper with reflective tape.

How to place and install wheel stoppers, step by step

1. Mark the bays first. Paint or renew the bay lines with line marking so each stopper sits centred in its bay.
2. Measure the overhang. A car's bumper sticks out beyond its wheels. Set the stopper far enough from the wall, kerb or walkway to leave that overhang plus a safety margin. Park a typical vehicle in the bay to check the position before drilling.
3. Keep it square. Set the stopper at right angles to the bay so both wheels touch it at the same time. With two short stoppers, line them up behind each wheel track.
4. Clean the floor. Sweep away dust and oil so the stopper sits flat.
5. Drill and anchor. Drill through the fixing holes into the floor and fix the stopper with anchor bolts or screws suited to concrete or asphalt. Tighten them so the stopper can't shift when a tyre hits it. KTI's installation service can do this for you.
6. Add the protection behind it. Fit wall guards on the wall and corner guards on pillars, in case a driver overshoots.
7. Test with a vehicle. Drive slowly into each bay, check the stop position and adjust before handing the car park over.

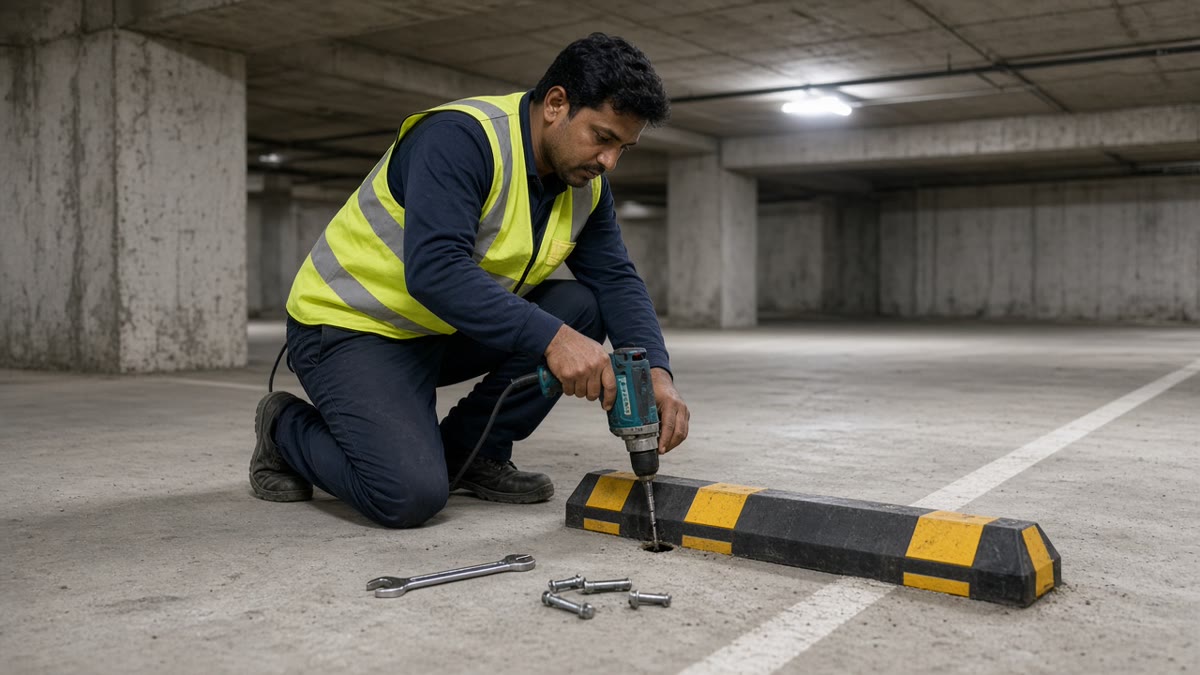

Drill, anchor and tighten: a stopper that can't move is a stopper that works.

What to fit at different sites

• Residential societies and office basements: two 600 mm rubber stoppers per bay, wall guards behind the bays and convex mirrors at ramps and blind corners.
• Malls, hotels and hospitals: stoppers with STOP stickers for visitors who don't know the car park, plus corner guards on every pillar.
• Factories, warehouses and logistics yards: 1800 mm rubber stoppers for vans and pick-ups, and truck wheel chocks at the loading bays to stop trucks rolling while they are loaded.
• Reserved and VIP bays: add a lockable parking post or a fold-down MS parking post so the bay stays free for its owner.
• Ramps and entries: a 50 mm rubber speed breaker at the top of the ramp and a quarter dome mirror where aisles cross.

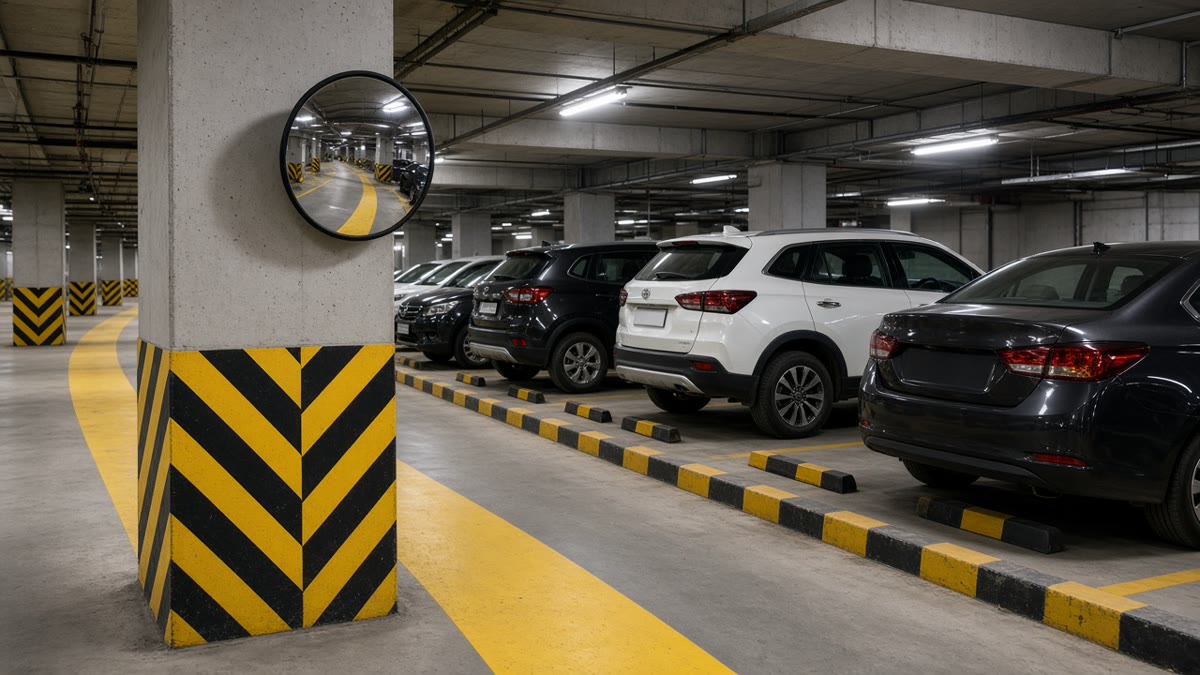

Stoppers, pillar guards and a convex mirror together make a car park that guides itself.

Maintenance tips

Walk the car park once a month and check that every stopper is tight and hasn't moved. Retighten loose bolts at once, because a loose stopper can trip people or roll. Replace any stopper that is cracked or broken. Clean reflective tape so it still shines under headlights, and renew faded bay lines and walkway markings every year or two. After the monsoon, clear any silt or debris that collects behind stoppers.

Related guides from KT India

• For the core road safety kit every facility should stock, read Essential Road Safety Products Every Indian Facility Manager Should Stock.
• For why hot-applied thermoplastic marking lasts longer, read Thermoplastic Road Marking Paint 101: Why Hot-Applied Beats Cold Paint on Indian Roads.
• For using speed guns and radar displays on private roads, read Speed Guns and Radar Speed Displays for Factories, Campuses and Private Roads.

Frequently asked questions

One long stopper or two short ones?
Two short stoppers suit standard car bays and let water drain. One long stopper suits bays used by vehicles of different widths, such as vans and cars.

Rubber or plastic?
Rubber for most car parks, because it absorbs impact and lasts in Indian weather. Plastic for light-duty, low-speed bays.

Can wheel stoppers damage a car?
Not when the height suits the vehicles and drivers park slowly. For bays used by low cars, avoid very tall stoppers.

Do wheel stoppers work outdoors?
Yes. Rubber stoppers are made for sun and rain, and they fix onto asphalt as well as concrete.

Make every bay self-guiding. Browse the full range of wheel stoppers, pillar and wall guards and convex mirrors, or use Enquiry Now on any product page for bulk and installation pricing.
