KTI16032001STOP

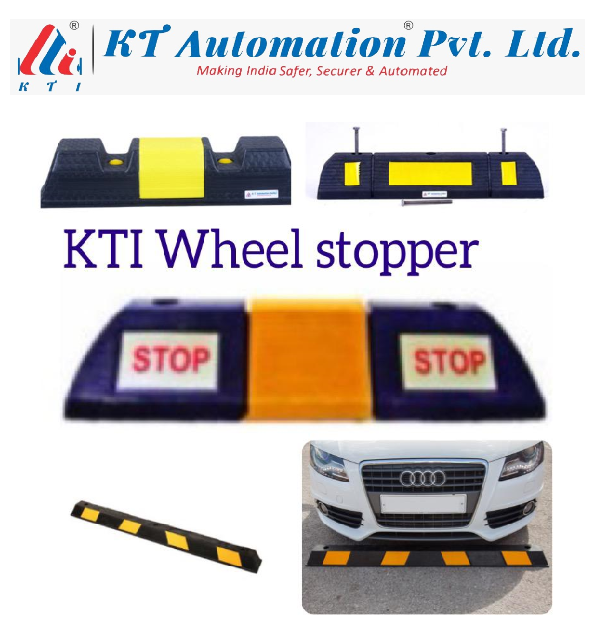

Heavy-duty vulcanised rubber wheel stopper designed for precise vehicle positioning and barrier protection in parking bays and commercial facilities.
Read More
The KTI16032001STOP heavy-duty rubber parking wheel stopper is engineered for direct surface-mounted installation on a wide variety of solid ground substrates. Prior to physical installation, evaluate the structural condition of the target parking bay or roadway area. The unit can be anchored onto solid concrete, cured cement flooring, or dense asphalt pavement across basement parking facilities, multi-level structures, external lots, industrial loading bays, and transit terminals.
Ensure the mounting substrate is completely structurally sound, level, and free of loose gravel, standing water, motor oil pools, and heavy debris. Thoroughly sweep or blow away residual dust from the targeted surface zone to allow flush, uniform seating of the 600 mm by 100 mm vulcanized compression-moulded rubber base.
Proper positioning ensures optimal vehicle tyre contact while protecting adjacent walls, barriers, walkways, and curbs from accidental impact. Position the stopper so that the high-contrast reflective 'STOP' surface marking faces directly toward the incoming vehicle approach path to provide clear driver guidance in indoor basements and low-light open-air lots.
The KTI16032001STOP unit weighs 3.0 kg and features pre-formed factory fixing holes designed for mechanical anchor bolts and fasteners. Follow this step-by-step procedure using standard rotary drill and hammer tools:
Once secured, perform a tactile check to confirm there is zero horizontal or vertical movement along the rubber profile. The vulcanized rubber compound resists outdoor temperature extremes, moisture, UV degradation, motor oils, and fuels, ensuring long-term operational integrity.
Establish a periodic maintenance schedule involving visual inspections of anchor bolt tightness and checking the adherence and cleanliness of the reflective STOP sticker. Routine surface washing with water or mild detergent preserves the high-visibility warning properties for incoming motorists.
The KTI16032001STOP heavy-duty rubber parking wheel stopper is engineered to establish precise vehicle boundary control, prevent structural impact damage, and streamline traffic flow across high-density vehicle environments. Constructed from vulcanized compression-moulded rubber with a high-contrast reflective STOP sticker, this 600 mm x 100 mm x 120 mm unit delivers tactile and visual stopping guidance across commercial, municipal, and industrial facilities.
Corporate campuses, IT parks, and administrative government buildings require orderly parking management to maximize stall capacity and safeguard exterior infrastructure. The KTI16032001STOP installs at the head of parking bays to prevent passenger cars, sedans, and SUVs from overrunning kerbs, striking perimeter fences, or colliding with utility hardware. Its 3.0 kg flexible compound absorbs minor tyre impact energy without inflicting cosmetic rim or bumper damage.
Multi-tier and underground parking garages present restricted maneuvering clearances, concrete support pillars, and low-light visibility challenges. Deployed on concrete and cement flooring, this wheel stopper provides drivers with clear stopping cues. The integrated reflective STOP surface sticker enhances visibility under low-light illumination, while the 120 mm height provides an effective physical limit that prevents vehicles from contacting structural walls and adjacent parked cars.
Airports, railway stations, and bus terminal park-and-ride facilities experience continuous vehicle turnover. The compression-moulded rubber material withstands repeated wheel impacts from sedans, passenger vans, and light commercial vehicles (LCVs). The unit resists oil drips, fuels, moisture, and temperature fluctuations, maintaining structural integrity across both covered terminals and exposed outdoor tarmac.
High-traffic retail properties, shopping complexes, and dealership vehicle display bays require neat, uniform vehicle alignment. Implementing one or two KTI16032001STOP units per stall ensures that customer and display vehicles remain within designated boundaries, preventing encroachment into pedestrian walkways, storefront glass, and landscaping zones.
Hospital drop-off zones, outpatient parking, and clinic visitor areas prioritize pedestrian safety. The KTI16032001STOP wheel stopper keeps vehicular traffic physically separated from emergency walkways, access ramps, and building facades. Fastened through pre-formed holes with mechanical anchor bolts into concrete or asphalt, it maintains stable positioning under regular daily use.
Industrial logistics centers, distribution yards, and toll booth approach lanes utilize the KTI16032001STOP to manage approach boundaries for service vans and light commercial transport. It provides a standardized stopping position that protects loading dock mechanisms, security booths, and automated gate equipment from impact.
| Application Setting | Compatible Surface | Target Vehicle Category | Key Operational Function |
|---|---|---|---|
| Corporate & Commercial Lots | Concrete, Paved, Asphalt | Sedans, SUVs, Passenger Cars | Kerb overrun and wall impact prevention |
| Basement & Multi-Level Garages | Concrete, Cement Flooring | Passenger Cars, Sedans, SUVs | Low-light driver guidance via STOP marking |
| Airports & Transit Terminals | Asphalt, Concrete Tarmac | Cars, Vans, LCVs | High-turnover stall boundary enforcement |
| Retail Malls & Showrooms | Paved, Asphalt, Concrete | Sedans, SUVs, Display Vehicles | Pedestrian walkway and storefront protection |
| Industrial & Logistics Hubs | Industrial Concrete, Asphalt | Light Commercial Vehicles (LCVs), Vans | Equipment and toll lane approach protection |
| Current Product |
Add product to compare
|
|||
|---|---|---|---|---|
| SKU | KTI16032001STOP | KTI16032001INST | KTI16032001WSRF | — |
| Brand | KTI | KTI | KTI | — |
| Price (excl. GST) | Ask for price | Ask for price | ₹ 312.00 excl. GST | — |
| GST % | 18.00% | — | ||
| Certifications | — | — | — | — |
| Availability | Made to Order | Made to Order | In Stock | — |
| Ask for price | Ask for price | — |
