An LED board on the shop floor only works if the right person can read it from where they stand. An accident-free-days board that is a grey blur from the gate, or a production figure that lives on a supervisor's phone, does nothing. Chosen well, an industrial LED display keeps safety, output and compliance in front of everyone, every shift, without a meeting. This guide covers the KTI range of industrial LED displays, how to choose the size, pixel pitch and colour, how to install and run a board, and which displays suit the gate, shop floor, dock and control room.

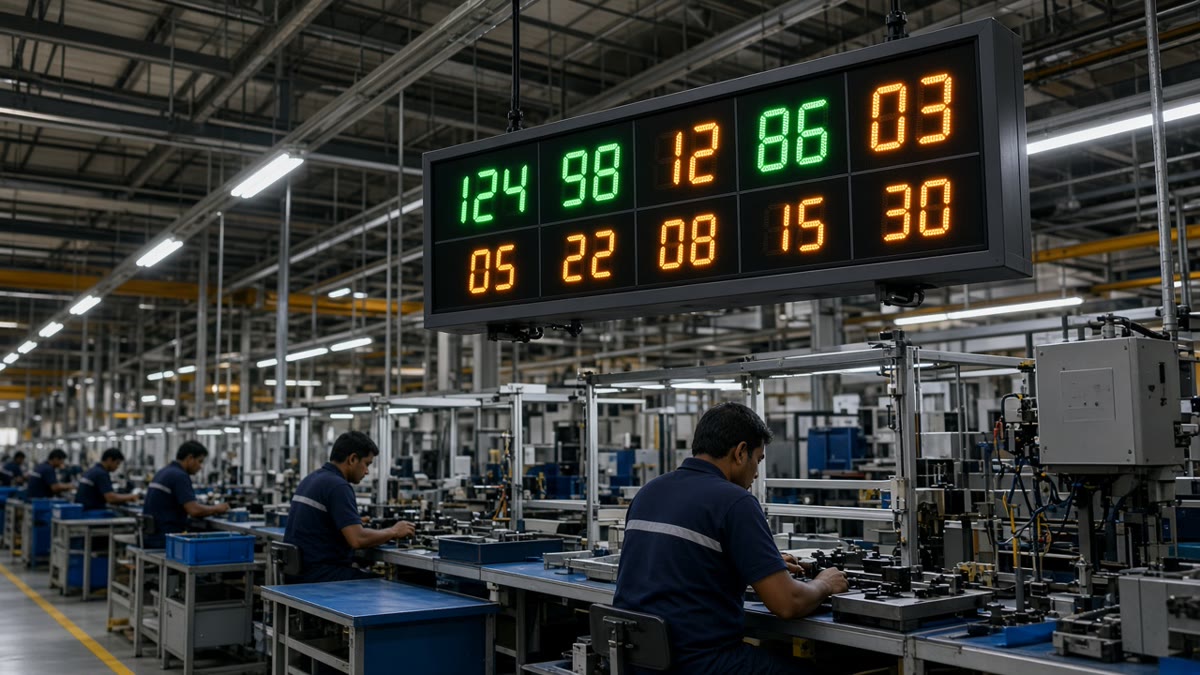

Target against actual, visible to the whole line without a meeting.
Choose the right board for the job

Product	Best for	Key details
Safety LED Display Board, Accident Free Days, 4 x 2.5 Feet	Safety record at the canteen, time office or department entry	P10, red, LAN and mobile connectivity
Safety LED Display Board, Accident Free Days, 6 x 4 Feet	Main gate and plant road, read from a distance	P10, red, updated from a mobile
Count Down Display Board	A simple days counter for a smaller area	6 in x 1 ft indoor red display, counts up one per day, reset button
Digital PPE Matrix Board Multicolor 3 x 3 Feet	Showing the PPE required at the entry to each area	Multicolour SMD LEDs, realistic PPE images, keypad operation, aluminium body
Digital PPE Indicators with Talking Board	Areas with many tasks and workers who prefer voice	Announces the PPE for the selected activity, 16 activities and 20 PPE items
Fire Fighter and First Aider Display Board 3 x 1 Feet	Naming the trained responders on each shift	P5, red, names change from a mobile app
Production Display LED Display	Target against actual on a production line	Programmable, waterproof, links to PC, PLC or RS485 instruments
Pollution Control Data Display Board P4 6 x 4 Feet	Emission and environment data at the gate	P4 outdoor multicolour, IP65 cabinet, LAN, text, figures and images
LED Display for Head Count System P10	Muster points and controlled entries	2 x 1 ft, shows date, time, in, out and net count
Vehicle Calling Display	Calling trucks to the dock or weighbridge	High-brightness dot matrix, day and night visible, about 100 mm characters
Truck Management System	Busy truck yards	Printed tokens, live dashboard of parked trucks, daily MIS report
LED Temperature Humidity Display Board	Stores, clean rooms and cold areas	2 x 2 ft, 12 in red characters, wall or hanging mount

How to choose size, pitch and colour
Start with viewing distance. Pixel pitch is the gap between LEDs in millimetres: P4 is about 4 mm, P10 is about 10 mm. Display engineers use a rule of thumb that the minimum comfortable viewing distance in metres is roughly the pitch number. So a P10 board reads well from about 10 metres and beyond, and a P4 board suits detailed figures read from closer. Then choose the character height, not just the cabinet size; a big board with a small font still fails. Pick colour for the message. Single red or amber is bright and cheap for numbers. Multicolour helps where you show pictures, such as PPE icons, or status colours. Finally, decide where the data comes from: a keypad, a mobile app, LAN, or a direct link to your PLC. If the safety officer can't update the figure in a minute, it won't be updated.
How to install and run an LED board, step by step

1. Stand where the reader stands. Measure the distance from the furthest person who must read the board, and check the sun and glare at the time it matters.
2. Pick the board. Match pitch and character height to that distance, and choose an outdoor, sealed cabinet such as the IP65 pollution board for gates and yards.
3. Prepare the mounting. Fix the wall bracket or structure for the board's weight and, outdoors, the wind. Leave access for servicing modules later.
4. Give it clean power. Run a dedicated supply with an MCB and surge protection. Brown-outs and spikes kill LEDs faster than age.
5. Connect the data. Pair the mobile app, connect LAN, or link the production display to your PLC or counter.
6. Name the owner. Give one person per shift the job of updating the board, and show them how.
7. Check it daily. Glance at the board at the start of each shift to make sure the figure is current and every segment lights.

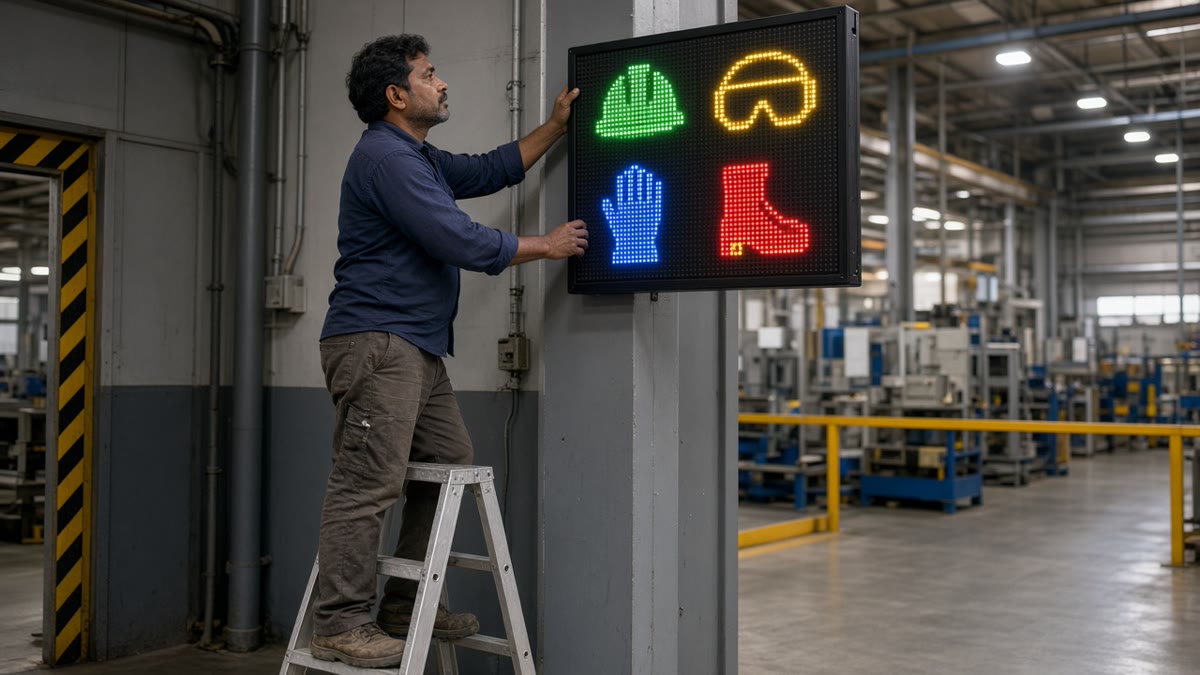

Mount PPE boards at eye level where people can still go back for a helmet.
Which board goes where

• Main gate and plant road: a 6 x 4 ft accident-free-days board and, for regulated plants, a pollution data board.
• Entry to each production area: a PPE matrix board or talking PPE board at eye level, where people still have time to go back for a helmet.
• Production lines: a production display showing target, actual and gap.
• Safety office, canteen and muster points: a fire fighter and first aider board and a head count display.
• Docks, weighbridges and truck yards: a vehicle calling display or the full truck management system.
• Stores and controlled rooms: a temperature and humidity display.

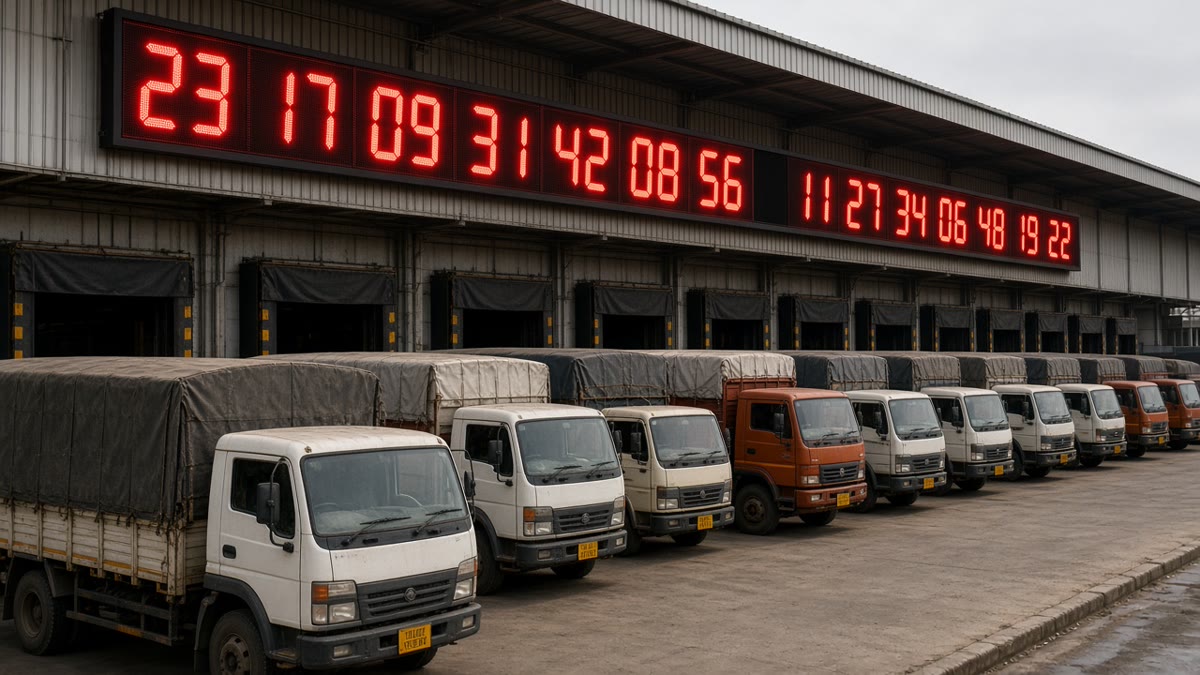

Vehicle calling boards keep the dock moving without shouting.
Maintenance tips
Wipe the display face every month with a soft dry cloth; dust dims the board. Check outdoor cabinets after the first monsoon rains for water at the cable entry. Keep a few spare LED modules and a spare power supply, so a dead section can be swapped in minutes. Note the app login and password in the maintenance file, not on one person's phone. Run boards at the brightness the location needs, not at full power all night.
Frequently asked questions
Which pitch for a board read from 15 metres?
By the rule of thumb, P10 works from about 10 metres, so it is a sensible start at 15 metres. Check a sample at the real spot and in real light.
Can the board update itself?
Yes, if you choose the matching input. Production displays can take counts from a PLC or counter; safety boards update from a mobile app or LAN.
Can an indoor board go outdoors?
No. Outdoor boards need a sealed cabinet and higher brightness for sun and rain.
Can we get a custom size or message?
Many KTI boards are made to order. Share the size, content and viewing distance through Enquiry Now.
Put the right number where people can see it. Browse the full range of safety LED display boards and LED display solutions, or use Enquiry Now on any product page for custom sizes and bulk pricing.
