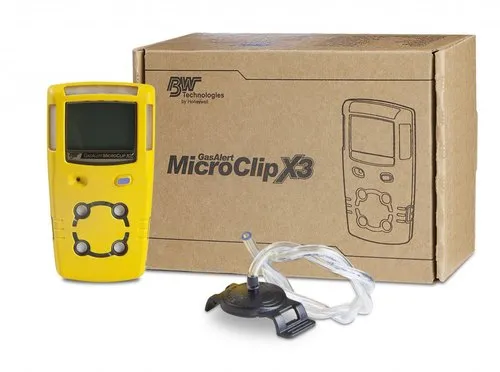

The Honeywell BW GasAlertMicroClip X3 is a compact, diffusion-based multi-gas detector engineered for simultaneous personal monitoring of up to four atmospheric hazards in hazardous industrial environments.

• Make/Brand: Honeywell
• Model: GasAlertMicroClip X3
• Sampling Method: Direct diffusion (without in-built motorized pump)
• Gases Monitored:
  • Hydrogen Sulfide (H2S): 0 to 100 ppm (1 ppm resolution)
  • Carbon Monoxide (CO): 0 to 500 ppm (1 ppm resolution)
  • Oxygen (O2): 0 to 30.0% v/v (0.1% resolution)
  • Combustible Gases (LEL): 0 to 100% LEL (1% resolution) or 0 to 5.0% v/v methane (0.1% resolution)
• Display: Continuous alphanumeric LCD showing real-time gas concentrations and system status icons
• Alarms: 95 dB audible alarm at 30 cm, bright wide-angle visual alarm bars, and internal vibrating alert (Low, High, TWA, STEL, OL)
• Compliance Visual: Flashing green IntelliFlash status indicator
• Enclosure & Attachment: Impact-resistant composite housing with built-in concussion-proof boot and stainless steel alligator clip
• Ingress Protection: IP68 rated (submersible up to 1.2 m for 45 minutes)
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Operating Humidity: 0% to 95% RH non-condensing
• Power Source: Rechargeable lithium-polymer battery, providing up to 18 hours typical runtime
• Dimensions: 11.3 x 6.0 x 3.2 cm (4.4 x 2.4 x 1.2 in.)
• Weight: 179 g (6.3 oz.)
• Compatibility: Honeywell IntelliDoX automated test and docking system, SafetySuite software, BW Connect
• Package Contents: Detector with specified sensors, stainless steel alligator clip, wall outlet charging adaptor, calibration/test cap with hose, operator manual
