Industrial Windsocks: How to Choose the Size, Stand and Lighting, and Install and Read Them

When gas leaks, smoke rises or a crane is about to lift, the first question is: which way is the wind blowing? A windsock answers it instantly, without power, software or training. Anyone on site can look up and see where the wind is coming from and roughly how strong it is. That is why windsocks belong at chemical plants, refineries, warehouses, construction sites, solar farms and helipads, not just airports. This guide covers the full KTI windsock range, from 4 ft to 8 ft socks in two colour schemes to caged, LED-lit, solar and flameproof sets, how to choose the size, fabric and stand, how to install and read a windsock, and what to fit at different kinds of sites.

In a gas leak or fire, move crosswind or upwind, never downwind.
Choose the right windsock and stand

Product	Best for	Key details
4 Feet Wind Sock Double Fabric 4 Reflective	Gatehouses, security cabins and small plants	Double-layer polyester, 4 reflective strips, waterproof and heat resistant; also in red and white and orange and green
4 Feet Wind Sock Double Fabric No Reflective	Small day-time sites	Double fabric, no reflective strips; the KTI 4 ft single fabric is the lowest-cost option
6 Feet Wind Sock Single Fabric No Reflective	Day-time use on a budget	Single-layer waterproof polyester; also in orange and green
6 Feet Wind Sock Double Fabric 3 Reflective	Most factories, warehouses and chemical plants	Double fabric, 3 reflective strips, 2 ft ring end, 1 ft narrow end; in red and white or orange and green
6 Feet Wind Sock Double Fabric 4 Reflective	Plants with floodlit yards	4 reflective strips, red and white or orange and green
6 Feet Wind Sock Double Fabric 5 Reflective, Red White	Sites that need better night visibility	5 reflective strips; also in orange and green
8 Feet Wind Sock Double Fabric 5 Reflective	Refineries, ports, large yards and open campuses	8 ft long for long-distance visibility, double fabric; non-reflective versions in red and white and orange and green
Stand for Wind Sock with Cage	Permanent installations	6 ft GI pipe, 2 bearings in dust-proof housing, MS strip cage that keeps the sock shaped
Stand for Wind Sock without Cage	Simple, lower-cost mounting	6 ft GI pipe with 2 bearings in a dust-proof housing; the simple MS pipe stand costs less again
6 Feet Windsock with Stand and 2 Ft Cage	A complete, ready-to-fix set	6 ft windsock with 4 reflective tapes on a caged GI stand
6 Feet Windsock with 10 Feet Double Bearing Stand	Sites where the sock must clear nearby obstructions	10 ft heavy-duty GI pipe, 2 weatherproof ball bearings, fluorescent polyester sock
Windsock with LED Light, Stand	Night operations with mains power	6 ft GI stand with base flange and LED floodlight; also as the LED light steel stand version
Solar Powered Illuminated Wind Socks	Remote sites, helipads and solar farms without power	Parachute polyester 24 x 72 in sock, solar-powered low-intensity LED aviation light
6 Feet Windsock with SS Stand and Flameproof Light	Hazardous areas at refineries and chemical plants	SS stand with a flameproof light listed as PESO certified, parachute polyester sock

How to choose
Size depends on how far away people need to read it. A 4 ft windsock suits a gatehouse or a compact plant. A 6 ft windsock is the most versatile size for factories and warehouses. An 8 ft windsock is for refineries, ports and big open campuses. Fabric: double fabric lasts longer in Indian sun and monsoon than single fabric. Visibility: choose reflective strips if the sock will be seen under vehicle headlights or floodlights, and an LED or solar-lit model for round-the-clock operations. Colour: red and white or orange and green, whichever stands out best against your skyline. In hazardous areas, use the flameproof light model.
How to install and read a windsock, step by step

1. Pick the spot. Choose a place with clear airflow, away from buildings, tanks and tall machinery that create turbulence, and visible from the control room, the main roads and the emergency assembly points.
2. Get the height right. Mount the sock above nearby obstructions. A 6 ft stand suits open ground. Use the 10 ft stand or a roof mounting where buildings are close.
3. Fix the stand firmly. Bolt the base plate to a concrete foundation or a strong structure, and make sure the pipe is vertical.
4. Fit the sock. Tie or clip the sock to the ring through its brass eyelets, then check that the bearing turns freely and the sock swings through a full circle without touching anything.
5. Connect the light. For LED models, have an electrician wire and test the light. For solar models, face the panel towards the sun and keep it clear of shade.
6. Read the direction. The wide mouth points into the wind, and the tail points where the wind is going. If the tail points east, the wind is coming from the west.
7. Read the strength. A limp sock means calm, a half-filled sock means a light to moderate breeze, and a fully stretched sock means strong wind. As a rough guide, a fully stretched sock means wind of about 15 knots (28 km/h) or more, and each segment that lifts adds a few knots. A windsock is a quick visual guide; use an anemometer where you need exact wind speed.

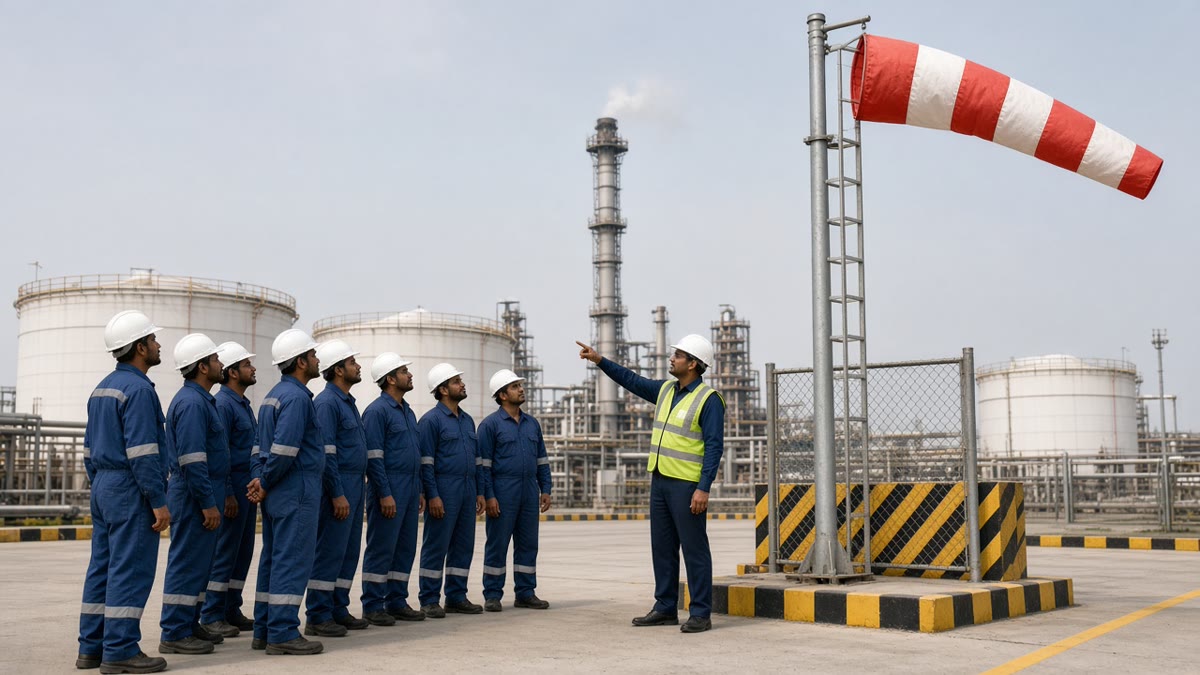

8. Use it in drills. During a gas leak or fire, people should move crosswind or upwind, never downwind. Show this on your evacuation plan and practise it in every mock drill.

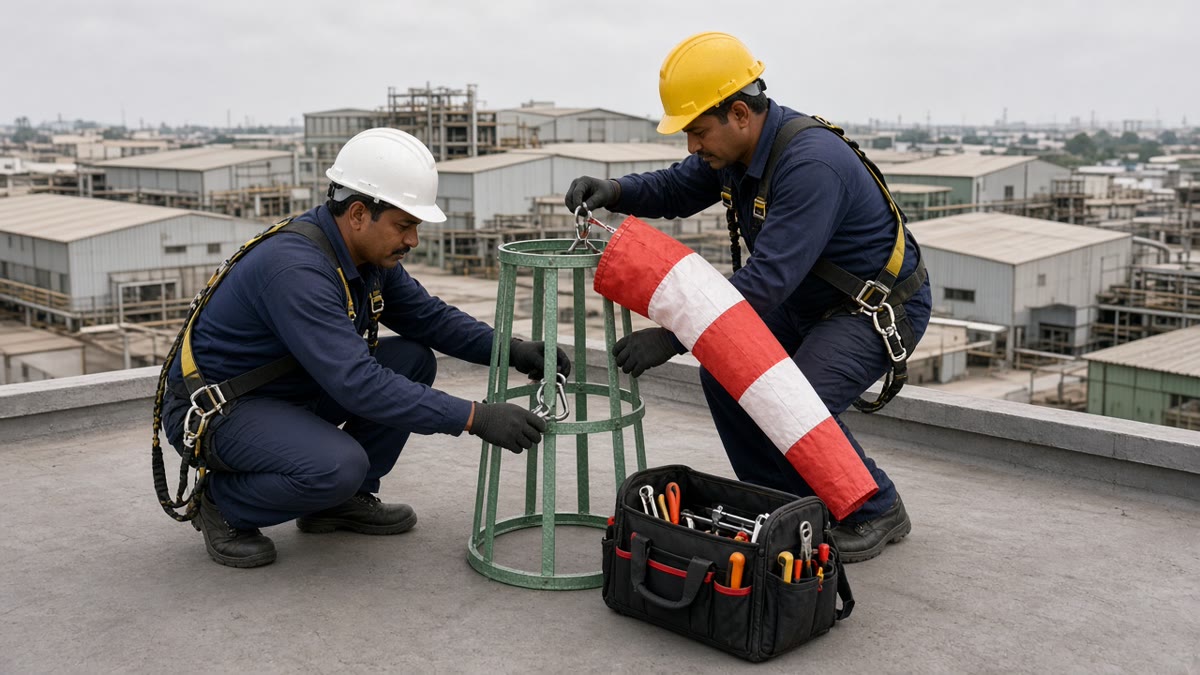

Fit the sock through its eyelets and check the bearing turns a full circle.
What to fit at different sites

• Chemical plants, refineries and gas stores: at least two 6 ft or 8 ft reflective windsocks, visible from every assembly point, with the flameproof light model in hazardous areas.
• Factories and warehouses: one 6 ft windsock with caged stand on the roof or near the main assembly point.
• Construction sites: a 6 ft windsock near the crane zone, so riggers and operators can check the wind before every lift.
• Helipads, solar farms and remote sites: a solar-powered illuminated windsock that stays visible at night without any cabling.
• Security cabins and small plants: a 4 ft windsock on a simple stand.

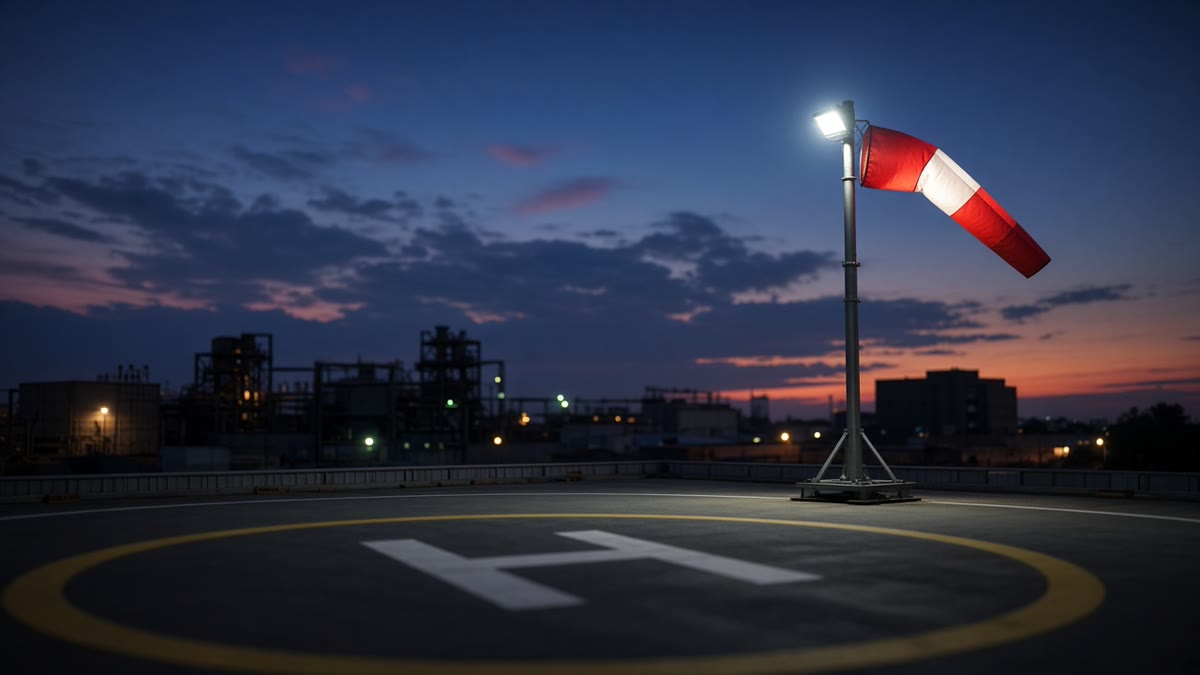

A lit windsock stays readable at night for night shifts and emergency landings.
Maintenance tips
Check the sock every month for tears, fading and loose eyelets, and clean off dust and soot so the colours stay bright. Every quarter, check the bearings turn freely, tighten the mounting bolts, check the pipe is still vertical and test any lights. Sun and monsoon wear out fabric, so replace a faded or torn sock promptly, and keep a spare sock on site so the stand is never left bare.
Frequently asked questions
Which size do most factories need?
A 6 ft windsock. Choose 8 ft for very large or open sites, and 4 ft for small areas.
Do I need a lit windsock?
Yes, if your site works at night or must respond to emergencies after dark. Reflective strips help under floodlights; an LED or solar light keeps it visible everywhere.
How long does the fabric last?
It depends on sun, rain, wind and pollution at your site. Inspect it monthly and replace it as soon as it fades or tears.
Can a windsock replace a weather station?
No. It gives an instant visual check of direction and rough strength. Use an anemometer where you need measured wind speed.
Know the wind before you need to. Browse the full range of windsocks and stands, or use Enquiry Now on any product page for site advice, bulk orders and dealer pricing. KT India ships windsocks and stands across India.
