Door Frame Metal Detectors: Single or Multi Zone, How to Choose, Set Up and Run a Screening Point

A door frame metal detector turns a crowded gate into a controlled screening point. Every person walks through the same frame, the detector checks them in about a second, and the guard only stops the people who trigger an alarm. That is faster and more respectful than patting everyone down, and it gives the security team a clear, repeatable routine. This guide covers the KTI range of door frame metal detectors (DFMDs) and the hand-held and baggage equipment that goes with them, how to choose between single zone and multi zone models, how to set up and run a screening point, and what to install at different kinds of sites.

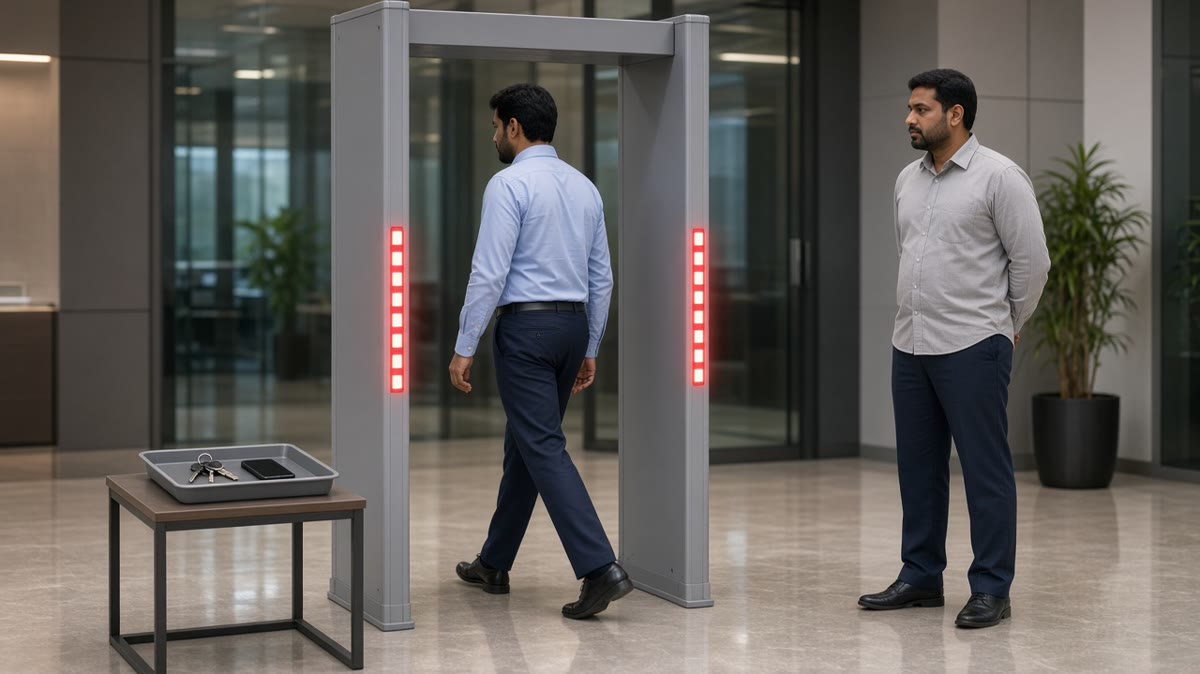

Multi zone detectors show the guard where the metal is, so alarms are resolved in seconds.

Choose the right detector for the gate

Single zone or multi zone?

A single zone detector tells the guard that the person is carrying metal, but not where. That is fine at an office or school gate where alarms are rare and a quick hand-held check finds the item. A multi zone detector splits the frame into zones from head to foot and lights up the zone where the metal is, so the guard goes straight to the pocket, belt or ankle. That saves seconds on every alarm, which adds up at a mall, hospital, factory shift change or event gate. For gates with heavy traffic, pick 6 zones or more. Choose 18 or 33 zones where the queue is long and staff need precise pinpointing. If the frame stands outdoors or under a canopy, check the ingress rating, such as IP54 or IP65, and pick a model with battery backup if power cuts are common.

How to set up and run a screening point, step by step

1. Pick the spot. Place the frame on a flat, level floor, at least a metre away from motors, lifts, rolling shutters, large metal doors and power cables. These cause false alarms.
2. Anchor and power it. Fix the frame so it can't be knocked over, and route the power cable so nobody trips on it. Keep two frames apart, as the manufacturer advises, so they don't interfere with each other.
3. Set the sensitivity. Use the controller to choose a programme for your site. Then walk through with a test object, such as a set of keys or a small metal item, and adjust until the frame detects it reliably without alarming on belt buckles and shoe shanks you have decided to allow.
4. Lay out the lane. Put a table or tray before the frame for phones, keys and coins, and leave space after it for the hand-held check. A separate lane for bags goes to the X-ray scanner.
5. Walk through one at a time. Ask people to walk at a normal pace through the centre of the frame. Running, or two people walking through together, causes missed or false alarms.
6. Resolve every alarm. When the frame alarms, use a hand-held detector on the zone shown, or ask the person to remove the item and walk through again. Never wave someone past an unresolved alarm.
7. Record the day. Note the traffic count, the number of alarms and anything found. Models with a counter or head count system do the counting for you.

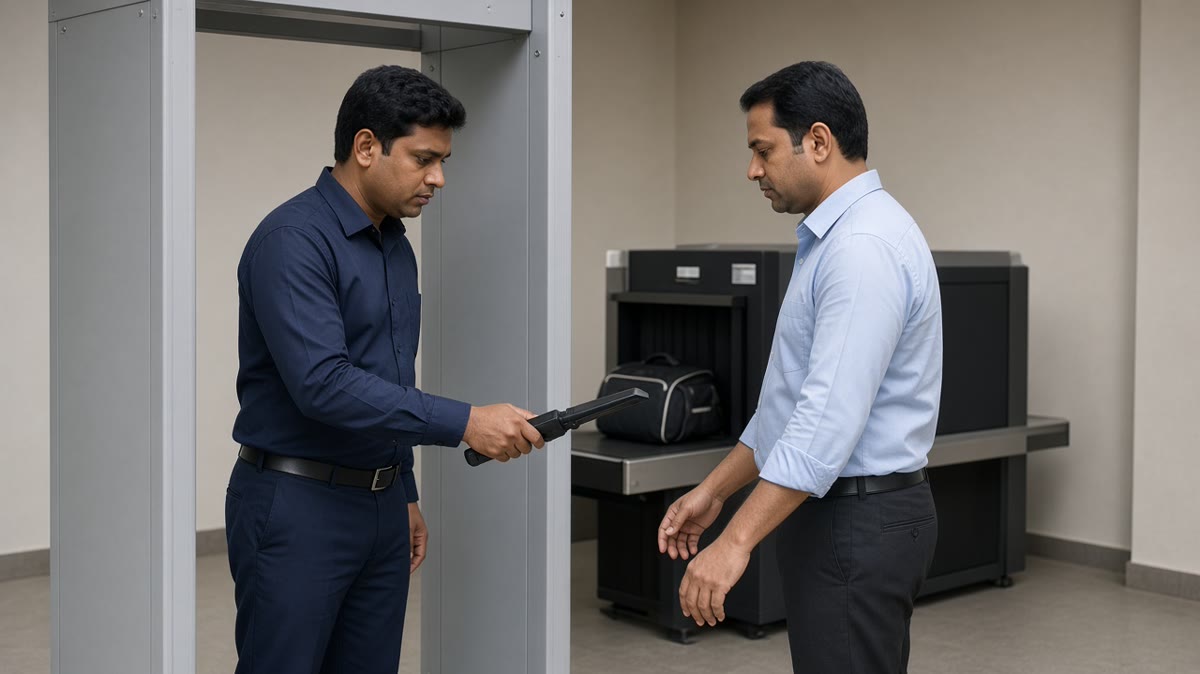

Resolve every alarm with a hand-held detector on the zone shown. Never wave anyone past.

What to install at different sites

• Offices, schools and colleges: a single zone DFMD at the main entrance with one hand-held detector per shift.
• Factories and warehouses: a Checkmate SM4F or a 6 zone frame at the staff exit to deter pilferage, with hand-held detectors at the gate cabin.
• Malls, hospitals and hotels: a 18 zone frame at each public entrance, a baggage scanner at the main entrance, and the CCTV model where alarm images must be recorded.
• Events, exhibitions and temporary sites: a GScan Pole for quick setup, or a GSCAN 33Z with battery backup for outdoor gates.
• Every site: a written procedure for alarms, a tray for personal items, and at least one spare hand-held metal detector.

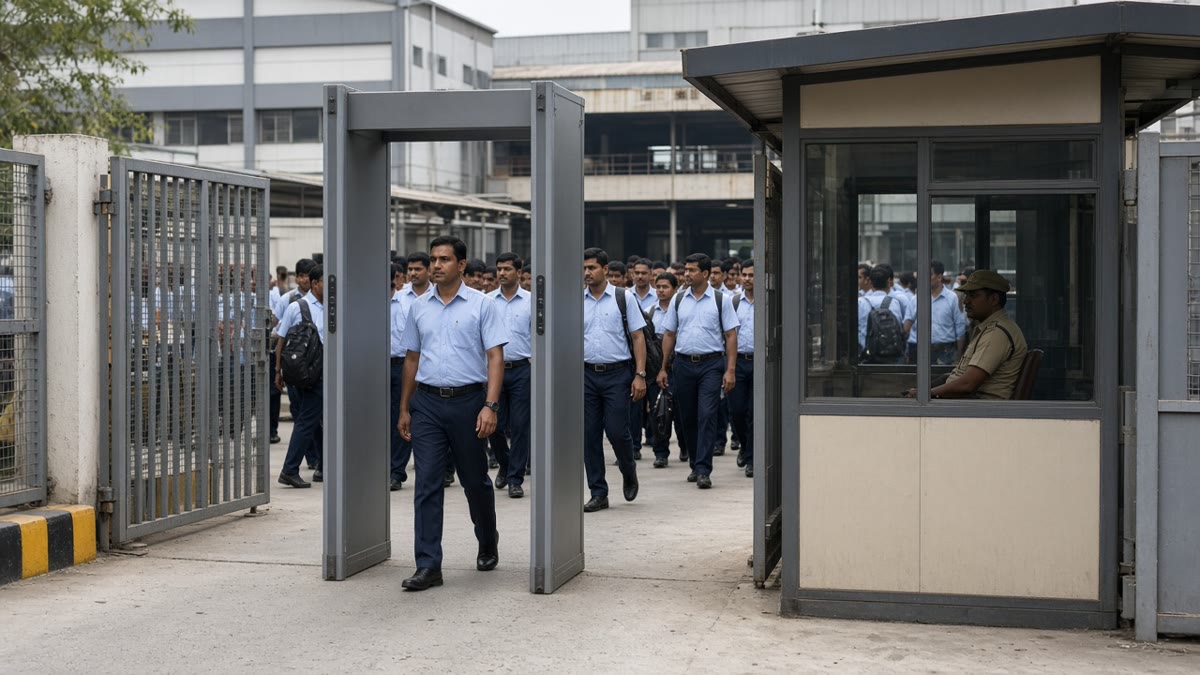

At factory exits, a door frame metal detector deters pilferage without slowing the shift change.

Maintenance tips

Start each shift with a walk test using the same test object, and write the result in the register. If the frame stops detecting it, or starts alarming at nothing, check for new metal objects or cables nearby before you change the sensitivity. Keep the frame clean and dry, keep its feet level, and don't let staff lean trolleys or ladders against it. Charge hand-held detectors after every shift and keep a spare charged. If the frame has a backup battery, test it once a month by switching off the mains. Have the system checked by a trained technician whenever it is moved to a new location.

Related guides from KT India

• For choosing a metal detector by site type, read How to Choose the Right Metal Detector Machine for Schools, Malls and Factories.
• For ladies frisking cabins and bomb threat kits, read Ladies Frisking Cabins and Bomb Threat Kits for Malls, Temples and Festival Venues.

Frequently asked questions

Is a door frame metal detector safe for pregnant women and people with pacemakers?
Walk-through detectors use a low-strength magnetic field. Still, anyone with a pacemaker or other implanted medical device should follow their doctor's advice and can ask for a hand-held or manual check instead. Keep that option available at every gate.

Do people have to empty their pockets?
Yes. Keys, coins, phones and belts with large buckles will trigger an alarm, so ask people to put them in the tray before they walk through. That keeps the queue moving.

How many people can one frame screen?
It depends on the alarm rate and how quickly alarms are resolved, not on the frame alone. A multi zone model and a well-laid-out lane with a tray and a hand-held check keep the flow steady.

Will it detect non-metal items?
No. A DFMD detects metal only. For bags, parcels and non-metal objects, add an X-ray baggage scanner.
