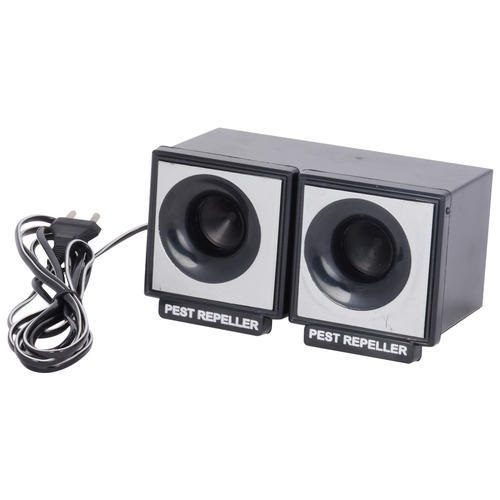

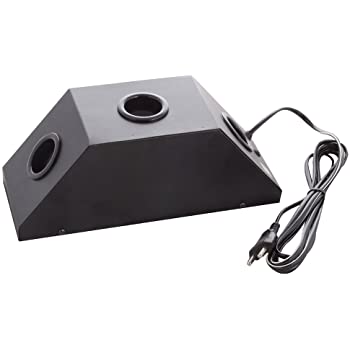

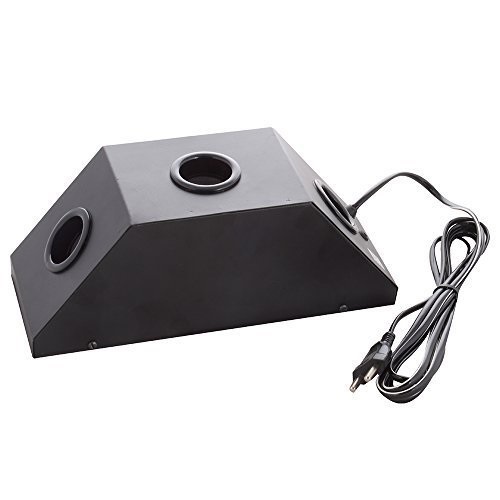

Ultrasonic Rat Repeller Digital Model No 101A

KTI10003002D101

Product Description

The Telenet Model No 101A (Ind-101A) is a heavy-duty digital ultrasonic rodent repeller engineered for reliable, continuous pest management across indoor commercial, IT, and industrial premises.

Make / Brand: Telenet
Model: Digital Model No 101A (Ind-101A)
Operating Mechanism: Digital high-frequency ultrasonic wave emitter
Effective Area Coverage: 400 to 500 sq. ft.
Sound Pressure Output: 115 dB
Power Supply: 220 V AC, 50 Hz / 24 V DC (80 mA)
Power Consumption: 10 W
Enclosure Material: Epoxy-coated metal body
Operating Duty: 24x7 continuous plug-and-play operation
Recommended Applications: ATMs, server rooms, control rooms, offices, retail spaces, and commercial storage areas

KTI10003002D101

Price

₹ 4,272.50 excl. GST

+ 18.00% Tax + Freight Charge

If you are an existing KTI Customer, Sign In to view your special price

Product Details
Available Brands	Telenet
Unit	Numbers
HSN Code	38089191
Weight	0.82 kg
Dimension	L 20.3 x W 10.2 x H 10.2 cm cm ft in m
Warranty	6 Months No-Onsite Warranty
Tags/categories	Automation Hygiene Automation Solutions Bird Repeller Mole Chaser

Usually dispatched within 5 days

About this product .

The Telenet Ultrasonic Rat Repeller Digital Model No 101A is designed to deliver non-lethal, eco-friendly rodent deterrence across sensitive commercial and institutional environments. By generating multi-frequency sound waves tuned to disrupt rodent nervous systems, the device prevents nesting and gnawing without using hazardous poisons, traps, or chemical baits.
Constructed with a robust epoxy-coated metal housing, the unit withstands harsh operational environments while effectively dissipating heat during uninterrupted 24/7 service. The compact form factor allows flexible positioning in tight electrical raceways, false ceilings, or dedicated wall mounts.
Equipped with a high-output digital acoustic transducer generating up to 115 dB sound pressure, the repeller creates an acoustic barrier covering 400 to 500 square feet. The emitted ultrasonic sweeps are completely inaudible and harmless to humans and non-rodent domestic animals.
The system is specifically engineered for critical infrastructure protection, making it suitable for ATM kiosks, server rooms, UPS rooms, network rack bays, telecom control facilities, and office pantries where rodent damage to cabling can cause catastrophic downtime.
Installation is straightforward plug-and-play, operating on standard 220 V AC single-phase supply with ultra-low power consumption of just 10 watts. For optimal wave dispersion, wall mounting at a height of 8 feet above finished floor level facing open space is recommended.

Product Information .

Bungalow, Farm Houses Farms Societies Hospitals, Clinics Shopping Malls, Showrooms

Installation and Deployment Guide for Telenet Model 101A Ultrasonic Rat Repeller

Pre-Installation Site Assessment and Acoustic Planning

Proper positioning of the Telenet Ultrasonic Rat Repeller Digital Model No 101A (IND-101A) is essential to achieve its rated 400 to 500 sq. ft effective coverage area. Ultrasonic sound waves operating across the 25 kHz to 65 kHz variable frequency spectrum behave similarly to light: they travel in straight paths and reflect off hard surfaces rather than penetrating solid boundaries. Before mounting the unit, survey the target indoor area to identify primary rodent transit corridors, nesting zones, and potential acoustic obstructions.

Because high-frequency acoustic waves cannot penetrate solid brick walls, concrete partitions, ceiling tiles, or dense structural barriers, each distinct enclosed zone requires dedicated transducer coverage. In multi-room facilities or segmented environments such as partitioned server rooms and partitioned storage areas, deploy separate units to avoid dead zones.

Mounting Height and Orientation Guidelines

The standard recommended installation height for the Telenet 101A is 8 feet (approximately 2.44 metres) from floor level. Positioning the unit at this elevation allows the dual-transducer output (generating 115 dB of sound pressure) to broadcast downward and outward across the floor area where rodents traverse.

Line of Sight: Mount the device with an open, direct line of sight aimed toward high-risk entryways, wire trays, or pest activity paths.
Obstacle Clearance: Maintain clear acoustic pathways. Do not position the dual speaker faces directly behind bulky furniture, dense storage pallets, or thick drapery, as soft materials absorb ultrasound and diminish acoustic impact.
Chassis Placement: The compact form factor of 4 x 8 x 4 inches (10.16 x 20.32 x 10.16 cm) and weight of 0.77 kg to 0.80 kg allows for stable placement on industrial shelves, control room racks, or wall-mounted brackets. The black epoxy protective coating provides durability in commercial and utility environments.

Electrical Setup and Connection Requirements

The Telenet Model 101A is designed for rapid plug-and-play installation without complex field wiring. Connect the unit directly into a standard 220 V AC, 50 Hz electrical wall outlet (operating range 220–240 V AC) or a compatible 24 V DC (80 mA) auxiliary power feed. With an energy-efficient power consumption rating of 10 W, the repeller is engineered for continuous 24/7 operation.

Facility-Specific Deployment Best Practices

Facility Type	Key Installation Focus	Primary Placement Target
ATM Kiosks & Self-Service Counters	Protect sensitive power lines, data cabling, and cash dispensing modules	Corner-mounted at recommended height facing internal machine cavities and perimeter skirting
Server & Control Rooms	Prevent cable chewing under false floors and within rack perimeters	Aimed along cable pathways, switchgear enclosures, and network rack alleys
Warehouses & Godowns	Deter pest access across open staging aisles and pallet bays	Mounted along perimeter structural columns facing active transit lanes
Domestic & Kitchen Spaces	Protect utility ducting, pantry shelves, and appliance voids	Wall-mounted with unobstructed broadcast across open floor and counter pathways

Post-Installation Commissioning and Maintenance

Once connected to power, the repeller must remain operational 24 hours a day, 7 days a week. Due to rodent behavioral patterns and reproductive nesting cycles, noticeable reductions in rodent activity typically occur within 2 to 4 weeks of uninterrupted continuous operation. During regular facility maintenance, ensure the speaker grilles remain free of dust, debris, and cobweb accumulation, as physical blockages on the transducer grilles can dampen the 115 dB acoustic output.

Industrial & Commercial Use Cases for Telenet 101A Ultrasonic Repeller

The Telenet Ultrasonic Rat Repeller Digital Model No 101A (IND-101A) provides an electronic, non-chemical pest deterrent solution for targeted indoor environments. Generating an acoustic sound pressure of 115 dB across a variable frequency range of 25 kHz to 65 kHz, the dual-transducer unit is engineered to protect spaces measuring 400 to 500 sq. ft against rodent infestation without recurring chemical replenishment or manual trapping.

ATM Kiosks and Banking Automation Enclosures

Automated Teller Machine (ATM) cabins, financial kiosks, and self-service transaction lobbies represent critical environments vulnerable to rodent gnawing on power feeds, communication lines, and peripheral wiring. Operating quietly above human hearing thresholds, Model 101A provides non-disruptive, 24/7 continuous protection for sensitive transaction terminals within standard single-room 400 to 500 sq. ft kiosk layouts.

Server Rooms, Control Rooms, and Electrical Panels

Data centers, server closets, control rooms, and electrical distribution rooms house high-density cabling and LV/HV panel enclosures where physical rat entry causes short circuits, insulation loss, and operational downtime. The unit's 10 W low-power footprint and dual-frequency sweep deter pests from establishing nesting sites in sub-floors and cable trays without emitting toxic residues or electromagnetic interference that could compromise digital infrastructure.

Warehouses, Godowns, and Storage Facilities

Commercial storerooms, raw material godowns, and inventory holding areas benefit from continuous ultrasonic pressure that drives rodents away from packaging, cardboard cartons, and stored dry goods. Because ultrasonic waves disperse effectively across open indoor air volumes up to 500 sq. ft, mounting the black epoxy-coated chassis at the recommended 8-foot (2.44 m) elevation provides an unobstructed barrier across primary pest movement paths.

Residential Spaces and Commercial Kitchens

In apartments, domestic kitchens, pantries, and commercial breakrooms, chemical rodenticides present food safety hazards and contamination risks. The 101A provides a clean, solid-state deterrent that is safe to operate around humans, children, and non-rodent household pets while drawing standard 220 V AC, 50 Hz line power.

Application Parameter Overview

Deployment Environment	Primary Target Area	Recommended Installation Height	Effective Coverage
ATM Kiosks / Lobbies	Internal wiring & floor ducts	8 ft (2.44 m) line of sight	400 – 500 sq. ft
Server & Control Rooms	Cable trays & panel racks	8 ft (2.44 m) line of sight	400 – 500 sq. ft
Warehouses & Godowns	Storage racks & staging bays	8 ft (2.44 m) line of sight	400 – 500 sq. ft
Kitchens & Pantries	Storage cabinetry & baseboards	8 ft (2.44 m) line of sight	400 – 500 sq. ft

Note: Ultrasonic frequencies do not penetrate solid structural walls, partitions, or closed ceilings. Separate units must be installed in adjacent enclosed rooms to maintain coverage throughout partitioned facilities.
