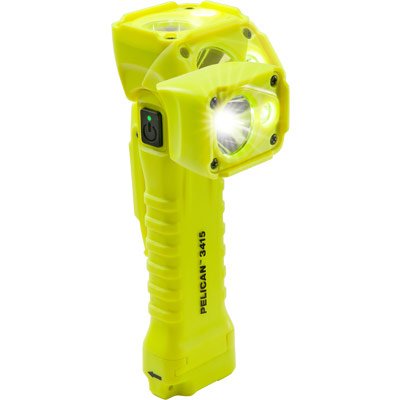

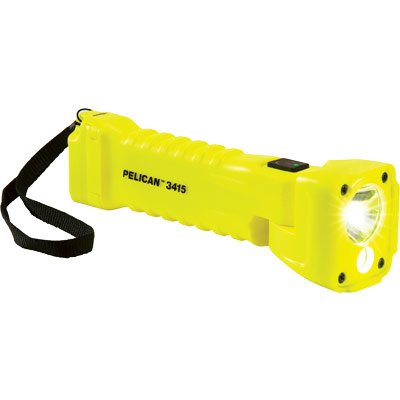

The Pelican 3415M Right Angle Light is engineered for hazardous, demanding industrial settings where reliable illumination and certified intrinsically safe operation are non-negotiable. With dual-beam optical functionality, magnetic mounting, and an articulating head, this compact right-angle flashlight serves diverse MRO, safety, and operational workflows.
Hazardous Area Maintenance and Turnaround Operations
Certified for Class I, Division 1, Class II, Division 1, and Class III, Division 1 hazardous locations, alongside IECEx ia intrinsic safety ratings, the Pelican 3415M provides safe lighting in volatile atmospheres containing flammable gases, vapors, or combustible dusts. Refineries, petrochemical facilities, pharmaceutical formulation suites, and grain-processing plants require lighting tools that cannot generate an ignition source. Operators can navigate volatile process bays using the High Visibility Yellow ABS body for rapid identification and compliance assurance.
Hands-Free Electrical Panel and Machinery Servicing
Plant technicians and instrumentation engineers regularly encounter poorly illuminated switchgear, junction boxes, and ferrous machinery enclosures. The built-in ABS clip includes an integrated heavy-duty magnet that securely anchors the light to structural steel columns, control cabinets, and metal conduit. The articulating head tilts to project illumination directly onto terminal blocks, relays, and valve actuators, leaving both hands free to handle multimeters, torque drivers, and calibration equipment.
Wet-Location and Confined Space Interventions
Confined spaces such as sumps, utility vaults, pump stations, and drainage conduits expose field tools to standing water and corrosive elements. Built with an ANSI FL1 IPX8 waterproof rating (submersible to 1 meter), a durable Polycarbonate lens, and an internal NBR O-ring seal, the Pelican 3415M operates reliably under submerged or high-moisture conditions. The integrated security lanyard and factory-installed split ring keep the light tethered to an operator's harness, eliminating accidental drops into active sumps or processing tanks.
Dual-Beam Facility Route Navigation and Inspection
Plant rounds require switching between immediate pathway visibility and targeted distant equipment inspection. The Pelican 3415M eliminates the need to swap tools by pairing dual LED arrays configured for independent or simultaneous output. Operating from 3 AA alkaline batteries (they are not included) delivering 4.5V, the unit enables shift managers to select the precise beam geometry needed for the task:
- Spot/Flood Combined Mode: Generates 336 lumens and 4,418 candela over a 133-meter beam distance with a 6-hour runtime, illuminating both immediate footing and high-bay overhead piping at once.
- Dedicated Flood Mode: Emits 177 lumens and 336 candela over a 37-meter distance for 15 hours of continuous operation, optimal for wide benchtop assembly, close-up documentation, and valve tagging.
- Dedicated Spot Mode: Projects 186 lumens and a peak intensity of 4,544 candela across a 135-meter distance for 14 hours, suited for structural integrity assessments, cable-tray inspections, and long conduit runs.
- Flashing Mode: Controlled via the ergonomic push-button switch to establish visual signaling and perimeter warning indicators during emergency shutdowns or lockout/tagout (LOTO) protocols.
Continuous monitoring through the full-time battery level indicator allows maintenance teams to track power reserves across standard shifts, ensuring 3 AA alkaline batteries (they are not included) are depleted in an orderly manner without unexpected light failure during critical plant outages.
