Product Information

Attribute

Value

Length

900 MM

Type

D Type

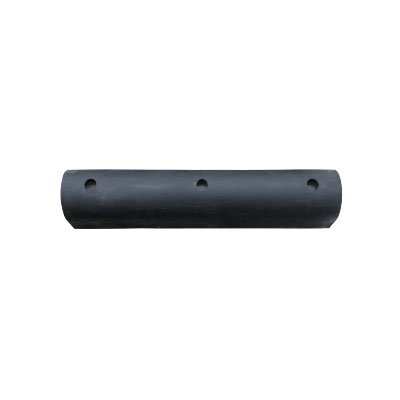

H2 D-Type 900 mm Heavy Duty Black Rubber Dock Bumper H2RDB-2

Dock Bumper D Type 900 mm

KTI1600800DH2RD

Product Description

The H2 H2RDB-2 is a heavy-duty D-type rubber dock bumper engineered for loading docks, warehouses, and industrial bays to absorb vehicle impact and protect structural dock walls.

Brand: H2 / KTI
Model: H2RDB-2
Profile / Shape: D-Type
Material: Molded High-Tensile Rubber
Length: 900 mm
Width: 150 mm
Height / Projection: 150 mm
Wall Thickness: 22 mm
Weight: 12.7 kg
Color / Finish: Black
Environmental Resistance: Resistant to sunlight, UV, rain, snow, petroleum products, and automotive chemicals
Mounting / Application: Loading docks, freight terminals, factory receiving bays, and low dock impact protection

KTI1600800DH2RD

Price

₹ 4,335.00 excl. GST

+ 18.00% Tax + Freight Charge

If you are an existing KTI Customer, Sign In to view your special price

Product Details
Available Brands	KTI, H2
Unit	Numbers
HSN Code	40169990
Weight	12.7 kg
Dimension	L 90 x W 15 x H 15 cm cm ft in m
Warranty	Not Applicable
Resources	Download Datasheet
Tags/categories	Safety Road Traffic Safety Solutions Dock Bumper

Usually dispatched within 7 days

About this product .

The H2 H2RDB-2 D-Type Rubber Dock Bumper is manufactured using a one-piece heavy-duty rubber molding process. Its robust vulcanised rubber construction provides high tensile strength, elasticity, and long-term abrasion resistance under repetitive vehicle contact.
Featuring a 900 mm length with a 150 mm width and 150 mm projection profile, the D-shape internal void geometry allows progressive deflection under compression. This hollow D-profile design cushions reversing freight vehicles and prevents severe mechanical shock from transferring into concrete dock walls.
Engineered for outdoor durability in harsh logistics yards, the rubber compound is formulated to resist prolonged UV sunlight exposure, heavy rain, temperature swings, snow, and incidental contact with fuels, lubricants, and automotive chemicals.
The unit is designed for anchoring against loading dock faces, logistics bays, distribution hubs, project wall faces, and industrial receiving terminals. It is suitable for medium and slow vehicle impact mitigation across trucks, trailers, and commercial container carriers.
Installing heavy-duty rubber dock bumpers prevents costly structural damage to facility walls, concrete edging, and dock levelers, while protecting trailer rear frames and reversing trucks during docking maneuvers.
The solid molded rubber structure requires zero routine lubrication or electrical maintenance. Periodic visual checks of anchoring hardware ensure continuous reliable safety across high-traffic industrial loading bays.

Product Information .

Industries, Factories Hospitals, Clinics Shopping Malls, Showrooms Refineries Chemical Plants Construction Sites

Installation and Mounting Guide for H2 Model H2RDB-2 D-Type Rubber Dock Bumper

Substrate Compatibility and Preparation

The H2 Model H2RDB-2 D-Type industrial rubber dock bumper (SKU: KTI1600800DH2RD) is engineered for direct surface-mount installation on industrial loading dock faces, factory delivery areas, and distribution warehouse freight bays. Before initiating installation, inspect the target substrate to confirm structural soundness. The unit is designed for attachment to standard cured concrete walls, structural bay curbs, and reinforced steel dock faces capable of withstanding vehicle berthing loads.

Ensure the mounting substrate is clean, level, and free of loose aggregate, oil, or heavy debris. Because each single one-piece molded rubber unit weighs 12.7 kg and measures 900 mm in length, 150 mm in width, and 150 mm in height, the docking face must provide continuous, uniform support across the full 900 mm contact length to ensure proper impact absorption.

Mounting Orientations: Horizontal vs. Vertical Configuration

The bumper features an energy-absorbing D-type profile with a 22 mm wall thickness. It can be mounted in two operational configurations based on bay design and incoming vehicle profiles:

Horizontal Mounting: Fastened horizontally along dock ledges to provide broad, continuous impact protection for concrete curbing against backing trailers and commercial trucks during slow- and medium-speed docking maneuvers.
Vertical Mounting: Fastened vertically projecting above low dock ledges to prevent high-bed transport vehicles or shipping container chassis from bypassing low dock edges and striking upper structural facility walls.

Direct Surface-Mounting Procedure

Align the 900 mm black finish rubber bumper at the designated impact height on the loading dock face, matching the standard bumper contact zones of expected delivery vehicles. Ensure the unit is aligned squarely to prevent uneven rotational torque upon vehicle contact.

Transfer anchor hole locations to the concrete or steel substrate. Drill anchor holes to the required depth and clear out all masonry dust and drilling debris. Secure the bumper to the dock face using heavy-duty anchor hardware suitable for concrete or steel substrates. Tighten all fasteners evenly to seat the rubber base flush against the bay curb without distorting the 22 mm thick D-type molded profile.

Post-Installation Commissioning and Maintenance Routine

After mechanical fastening, confirm that the 12.7 kg assembly is seated firmly against the dock wall without lateral play. The vulcanised rubber construction (HSN: 40169990) provides high tensile strength, abrasion resistance, and weather-resistant durability against sunlight, rain, and snow, along with resistance to incidental contact with petroleum products and automotive chemicals.

Implement a routine post-installation maintenance schedule. Cyclic docking compression and vibration from reversing commercial vehicles can induce anchor bolt loosening over time; regularly inspect and re-torque mounting hardware. Visually check the 900 mm rubber profile for severe cuts, gouges, or fatigue, and wash away heavy petroleum or chemical residue using water or a neutral detergent solution.

Installation and Mounting Guide for H2 Model H2RDB-2 D-Type Rubber Dock Bumper

Substrate Compatibility and Preparation

Mounting Orientations: Horizontal vs. Vertical Configuration

The bumper features an energy-absorbing D-type profile with a 22 mm wall thickness. It can be mounted in two operational configurations based on bay design and incoming vehicle profiles:

Horizontal Mounting: Fastened horizontally along dock ledges to provide broad, continuous impact protection for concrete curbing against backing trailers and commercial trucks during slow- and medium-speed docking maneuvers.
Vertical Mounting: Fastened vertically projecting above low dock ledges to prevent high-bed transport vehicles or shipping container chassis from bypassing low dock edges and striking upper structural facility walls.

Direct Surface-Mounting Procedure

Post-Installation Commissioning and Maintenance Routine

Industrial Applications and Operational Use Cases

The H2 Model H2RDB-2 D-Type Industrial Rubber Dock Bumper (Ref: KTI1600800DH2RD) is engineered to provide impact absorption and structural protection across high-traffic freight environments. Featuring a 900 mm length, 150 mm width, 150 mm height, and a 22 mm wall thickness, this 12.7 kg one-piece molded bumper mitigates vehicle-to-facility collision damage across diverse industrial installations.

Industrial Loading Docks and Distribution Warehouses

In high-throughput logistics hubs, distribution centers, and freight terminals, loading bays undergo continuous docking cycles from commercial trucks, semi-trailers, and delivery vehicles. Installed along concrete loading dock faces, the H2RDB-2 acts as a primary energy-absorbing buffer. Its one-piece molded rubber construction provides high tensile strength and abrasion resistance, preventing concrete spalling, structural degradation, and trailer chassis damage during daily docking maneuvers.

Factory Delivery Areas and Manufacturing Dispatch Bays

Manufacturing facilities with dedicated raw material intake and finished goods dispatch docks require heavy-duty impact mitigation. The H2RDB-2 bumper installs directly to concrete walls and structural bay curbs to protect building perimeters from reversing transport carriers. Its dense 22 mm thick D-profile absorbs compressive berthing forces, shielding structural foundations and curb edging from repeated low-velocity docking impacts.

Medium and Slow-Speed Vehicle Impact Mitigation

The bumper is specifically designed for medium- and slow-speed vehicle docking environments. Reversing commercial trucks, trailers, and delivery vans exert significant force when approaching a bay ledge. By providing 150 mm of projection and resilient hollow-core D-type compression, the H2RDB-2 cushions contact, reducing mechanical shock transmitted to dock levelers, concrete facades, and vehicle bumpers.

Low Dock Ledges and Structural Wall Projection

Facilities with low dock elevations often face over-ride risks where taller truck beds or trailer frames strike the upper wall above the concrete curb. The H2RDB-2 can be mounted vertically to project above low dock ledges or positioned horizontally along the upper edge of structural concrete. This configuration creates an extended vertical buffer zone that catches varying vehicle bumper heights and prevents direct impact against exposed building cladding.

Outdoor and Harsh Environment Deployments

Engineered for all-weather outdoor dock applications, the H2RDB-2 withstands prolonged exposure to direct sunlight, rain, and snow without structural degradation. In busy yard environments where exposure to automotive fluids is common, its material formulation provides resistance to incidental contact with petroleum products, engine fuels, and commercial automotive chemicals.

Application Suitability Matrix

Deployment Environment	Mounting Orientation	Primary Function
Distribution Warehouses	Horizontal along dock face	Absorbs continuous trailer docking compression
Manufacturing Dispatch Bays	Direct wall / bay curb mounting	Protects structural concrete from reversing trucks
Low Dock Ledges	Vertical projection above curb	Prevents trailer overtopping and wall impact
Outdoor Freight Yards	Surface-mounted to steel/concrete	All-weather impact mitigation and chemical resilience

Industrial Applications and Operational Use Cases

Industrial Loading Docks and Distribution Warehouses

Factory Delivery Areas and Manufacturing Dispatch Bays

Medium and Slow-Speed Vehicle Impact Mitigation

Low Dock Ledges and Structural Wall Projection

Outdoor and Harsh Environment Deployments

Application Suitability Matrix

Deployment Environment	Mounting Orientation	Primary Function
Distribution Warehouses	Horizontal along dock face	Absorbs continuous trailer docking compression
Manufacturing Dispatch Bays	Direct wall / bay curb mounting	Protects structural concrete from reversing trucks
Low Dock Ledges	Vertical projection above curb	Prevents trailer overtopping and wall impact
Outdoor Freight Yards	Surface-mounted to steel/concrete	All-weather impact mitigation and chemical resilience

Related Products .

Page 1 of 3

Syncing...

Compare with similar products .

	Current Product Dock Bumper D Type 900 mm	Dock Bumper D Type 900 mm 7kg	Rubber Dock Bumper 400x150x80mm	+ Add product to compare
SKU	KTI1600800DH2RD	KTI1600800DH2R1	KTI160080014568	—
Brand	H2, KTI	H2	KTI	—
Price (excl. GST)	₹ 4,335.00 excl. GST	₹ 2,250.00 excl. GST	₹ 1,812.50 excl. GST	—
GST %	18.00%	18.00%	18.00%	—
Length	900 MM	900 MM	—	—
Type	D Type	D Type	—	—
Certifications	—	—	—	—
Availability	Made to Order	Made to Order	Made to Order	—
				—

Category FAQ .

Dock Bumper

Dock Protection Bumper, Marine Dock Guard, Boat Dock Bumper, Dock Edge Protector, Marine Bumper, Dock Safety Bumper, Docking Protection Device, Heavy-Duty Dock Bumper, Dock Safety Guard, Rubber Dock Bumper, Port Dock Protector, Dock Impact Absorber, Dock Corner Bumper, Docking Safety Bumper, Floating Dock Bumper

Dock bumpers are protective devices designed to absorb impact and prevent damage to loading docks, trucks, and buildings during loading and unloading operations. They are typically made of durable materials such as rubber, polyurethane, or steel and are installed on the dock walls or truck trailers to provide a cushioning barrier.

Dock bumpers offer several benefits, including: Impact absorption: Dock bumpers absorb the impact of vehicles or trailers during docking, reducing the risk of damage to the dock structure, trucks, or goods being transported. Protection: They provide a protective barrier between the loading dock and trucks, preventing scratches, dents, and other damages that can occur during the loading and unloading process. Worker safety: Dock bumpers enhance safety for workers by reducing the risk of accidents caused by sudden impacts or collisions between trucks and the loading dock. Longevity: High-quality dock bumpers are designed to withstand repeated impacts, weather conditions, and exposure to chemicals, ensuring long-lasting performance and cost-effectiveness. Versatility: Dock bumpers are available in various sizes, shapes, and materials to suit different dock configurations, truck types, and loading requirements.

When choosing a dock bumper, consider the following factors: Dock type: Determine the type of dock you have, such as a loading dock with a vertical wall or a dock with a sloped approach. This will help you select the appropriate bumper design. Truck size: Consider the size and type of trucks or trailers that will be using the dock to ensure the bumper provides sufficient coverage and protection. Impact capacity: Evaluate the expected impact force and frequency to select a bumper that can handle the specific requirements of your loading operations. Material: Choose a bumper material based on the level of impact resistance required, durability, and compatibility with your environment (e.g., exposure to chemicals or extreme temperatures). Installation method: Different dock bumpers have different installation methods, such as bolting or welding, so ensure the chosen bumper can be properly installed on your dock.
