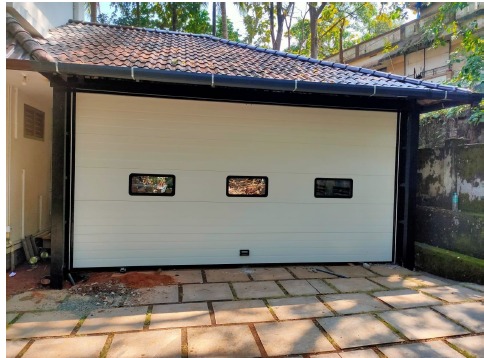

Size : Customised as per client 's requirement Sectional Overhead Doors With Complete Hardware Panels: - Supply & Installation Of Double Skin Insulated Polyester Painted Hot Dip Galvanised 40 mm Thick Panels. Panel Core Insulated with High Density Of 48 Kg/m3, CFC Free Polyurethane Foam. Panel Colour RAL 9010 Vision Windows – 600 mm X 320 mm - 2 Nos. Each Door Door Speed: - 0.4 Meters / Sec to 0.6 Metres / Sec Hardware: - Flexi-Force – Netherlands Automation: - Motor “ARYAN” Branded & Made In Italy I Phase With Built In Encoder & Electronic Limit Switch, Safety Break, Control Panel, Motor Shaft, Motor Components & Ass. Safety Sensors & Safety Edge For Manual Operation – In Built Chain Pulling Systems In Motor High-Tech Sectional Industrial Doors Are Installed On Industrial Objects, Docks, In Departments And Terminal. The Advanced Technologies And High-Quality Materials Are Used During Every Detail Manufacturing, Different Types Of Guides Permits To Install Doors In Any Premises, Rational System Of Doors Opening Saves Useful Space Inside And Outside The Premises. The Foam Polyurethane Filler Of Doors Leaf And Seals Alongside The Perimeter Of The Whole Opening Provides Perfect Insulation. Aesthetic Doors Appearance Is Finished With Building Outside Decoration; Functional Steel Construction Attracts Attention Inside The Premises Leaf Construction Constructed From Steel Insulated 40mm Thick Steel Sandwich Panels & The Inner And Outer Substrates Are 0.45mm Continuously Hot Dip, Zinc Coated Structural Steel. The Insulation Core Is HFC, CFC & HCFC Free “PIR” Polyisocyanurate Foam With Zero Ozone Depletion Potential And Therefore Fully Compliant With Montreal And Kyoto Protocols. Polyisocyanurate “PIR” Belongs To The Same Chemical Family As Polyurethane “PUR” But With The Added Benefits Of Being Self Extinguishing And Being Difficult To Ignite Offering Enhanced Fire Performance. The Individual Panels Have A Thermal Bridge And A U Value Of 0.45 W/M2K And A Weighted Sound Reduction Of (RW) Of 25db. The Colour Finish Is White Stucco Embossed Polyester RAL 9010. Weather/Perimeter Seals Are Provided To All 4 Sides Of The Door. Track System The Track System Is Manufactured From 2mm Cold Rolled Sections Joined Together With Unique Riveting System Leaving The Galvanising Intact And Improved Aesthetics, Horizontal Tracks Are Supplied With Fast Assembly Hanger System. Hardware Each Panel Is Connected To Its Adjoining Panel With High Quality Galvanised Adjustable Roller Carriers. The Rollers Have A Steel Shaft And Nylon Running Surface And A Ball Race Bearing. The 1st 4 Rollers On Each Side Have Plastic Covers To Prevent Finger Entrapment During The Open And Closing Cycles. The Door Leaf Is Perfectly Balanced By Means Of Torsion Springs “Shot Blasted” And Silver Coated For Longer Life And Improved Aesthetics, Specification 1.1002 Sort C ►Note: - Providing Of Hydra Or Articulating Boom Working Height 3 Meters Will Be In Client Scope ►Note: - Each Door Will Take 5 Working Days To Install Once The Site Is Ready Tom Install ►Note: -: - MS Structure In Client Scope As Per Our Drawing ►Note: - Any Civil, Carpentry Or Electrical Work Will Be in The Client Scope.
