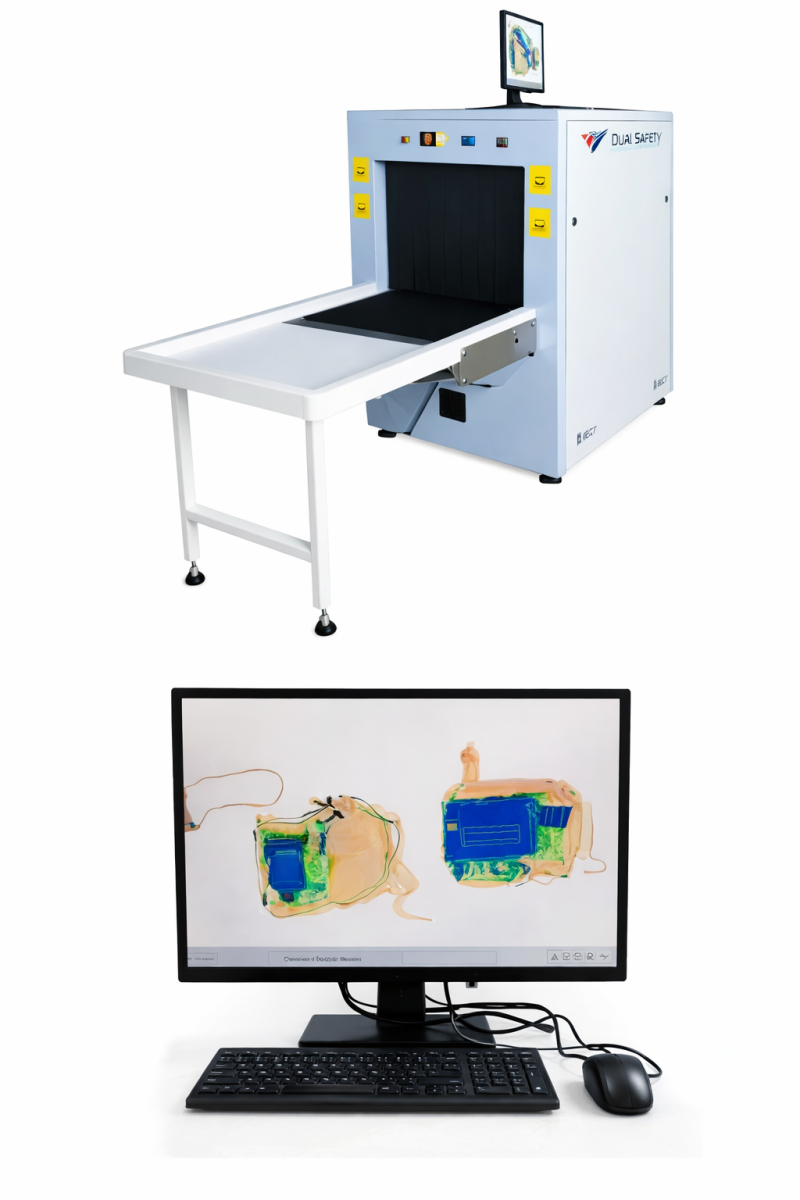

Make:Trust Safety
Model no: Trust Safety Solutions 5030y
Tunnel Size:-500x300mmy
Single Energyy
Features:y
 Linux Operation Systemy
 ARM CPUy
 Digital signal and processory
 Continuous hard work for 10000 hoursy
 Energy saving designy
 High penetrationy
 Good quality imagesy
 Automatic Built in Test and Self Diagnosisy
 Secure Access Keyy
Product Size : 2178* 746 * 1165mm (L × W × H)y
Tunnel Size: 504.7* 303mm (width × height)y
Wire Resolution -Typical AWG40y
Penetration Resolution - Typical AWG32y
Spatial Resolution -Vertical 1.0mm; Horizontal 1.0 mmy
Penetration - Typical 8mmy
X ray dose per each inspection :≤ 3.5 μGyy
Conveyor Speed :0.2(m/s)y
Power Consumption : 0.5 KW
Leakage current :≤ 5.0mA
Film Safety :Guarantee ASA/ISO 1600 Film
Anode Voltage :80 KV
Generate direct: From Bottom To Top
Electric Roller: Direct Current
Computer:
Monitor - 21.5” LED screen, Resolution: 1280*1024 pixels
Operation console - Single Screen Console
Computer - Hard drive: 500G, Storage: 1G
Compliance:
 ISO19001 ; ISO14001 ; ISO27001
 CE , ROHS , FCC , REACH , USA , FDA
 Health Inspection Report
 Computer Software Copyright Registration Certificate
 Software Product Registration Certificate
 Radiation Safety Certificate from Ministry of Public Security
