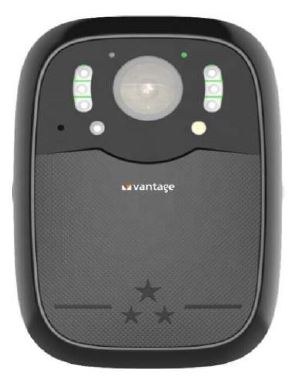

Body Worn Camera SC BWG30
Body Worn Camera SC BWG30
Body Worn Camera SC BWG30
Body Worn Camera SC BWG30 Body Worn Camera SC BWG30

Body Worn Camera SC BWG30

KTI030060BSBWG3

SC-BWG30

Key Feature:
* Video Compression: H.264/H.265
* Day and Night.
* Long Life Battery Record
* Supported SD Card
* Support Two-way Radio
* Record Audio and Video Same time.
* Supported Playback
* Fast charging

Product Specifications:
OS
Sensor 5 million pixels CMOS image sensor
OS Linux 4.9.110
Booting time < 6 Seconds (From power on to recording)
Lens (HOV) >140°
Video
Video input 1 channel optional camera connect
Video output 2 inch Full HD LCD screen
Recording
Resolution
2688x1512,2560x1440,1920x1080,1280x720
Frame rate 25fps@ (2688×1512)/30fps @ (2560×1440)/30fps@ (2304×1296)/30fps@ (1920×1080)/
60fps@ (1920×1080)/30fps@(1280x720)/ 60fps@(1280x720)
Record mode Video and Audio synchronization, 2 Independent Video Streams for Local Record and
Remote View
Compression H.264/ H.265/MP4
Dual video stream 2 Independent Video Streams for Local Record and Remote View
Audio
Audio input 1x MIC input,
Optional: external intercom audio input 2.5mm jack for headphone, microphone and PTT
Compression PCM format (AAC optional)
Audio record Support audio only recording , one key switch between Audio and Video record mode
Resolution
Video resolution 10752x6048 / 5376x3024 / 2688x1512
Image 1920x1080 ～ 8640x4752
Snap Support snapping during recording (photo resolution same as recording video）
Snapshot JPEG (5/10/20/25 Pictures Simultaneously)
Storage Built in 16GB TF card(optional for 32～256GB)
Light
IR Up to 10 Meters at 0 lux with Visible shape image
Flash light Use in Night
Laser Lock image center or pointing
Two way intercom
Cluster intercom Support for cluster intercom between terminal devices (only for 4G/3G device)
Intercom with
platform
Support intercom between server and terminal devices (only for 4G/3G device)
Alarm
SOS SOS key press will be notification on the platform (only for 4G/3G device)
Network
USB 1x USB2.0，for charging, communication with PC, connect external HD camera
Protocol TCP/IP, RTSP, RTMP (only for 4G/3G device)
3G/4G Built in 3G/4G module (FDD-LTE/WCDMA/GPRS) (only for 4G/3G device)
Wifi WIFI Client and AP mode (Optional)
Bluetooth Bluetooth 4.0 (Optional)
GPS GPS/GLONASS (optional)，location and speed can be used in local record and remote view,
excellent signal quality with cold start 140 degree), support maximum 8X digital zoom
Safe mode Limited for only video and audio recording, photographing or other basic operations
Record encryption Support AES 256 Record encryption technology, encrypted video can be only played in
special player
Log Record key operation, setting change, events, alarms and other information
Monitoring
Player Play back video files on the PC and analyze data information in the file.
Client Software Remote live view/real-time positioning/track playback/intercom/monitoring/remote
command delivery, etc. (only for 4G/3G device)
Firmware Firmware can be upgrade though USB or Internet (only for 4G/3G device)
Interface GUI (Graphic User Interface)
Time synchronize date and time with GPS, internet, PC
Charge
Charging Fast charging@2A (2-4 Hours), USB data transmission
Default Restore with factory default setting
Indicator Charging, Idle, Video Record, Snap, Audio record
General
Temperature -30--60℃
Humidity 40%～95% RH
Language English
Battery capacity Built-in 3600mAh battery (Optional: 2pcs 2700mAh/ 4200mAh) main battery
BIS Certified
Battery Backup 13 hours with 3600mAh, Optional: 18 hours(9h+9h) with Dual 2700mAh, continuous 4G
remote view up to 5h+5h
Auxiliary Battery 60mAh (body camera can keep working when exchange main battery)
Drop Test 2M, MIL810, JS55555 Certified
Waterproof IP67
Size 88.3*59.8*34.4mm
Wight 144g（with one main battery, without clip）
Certification CE,FCC, BIS Certified(Battery)

Read More

Body Worn Camera SC BWG30

KTI030060BSBWG3

Price
₹ 50,781.25 excl. GST
+ 18.00% Tax + Freight Charge
